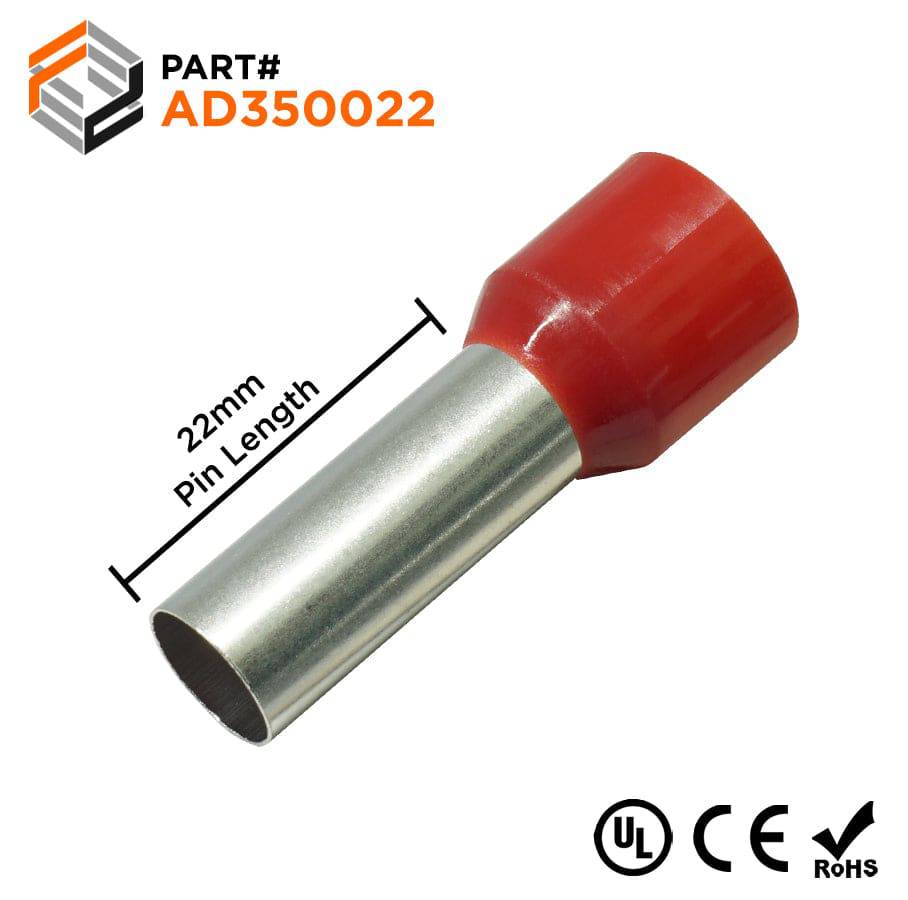

AD350022 - 2 AWG (22mm Pin) Insulated Ferrules - Red

Original price $15.90 - Original price $15.90
Original price
$15.90
$15.90 - $15.90
Current price $15.90
SKU AD350022
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2 AWG
Color: Red
L1: 36.0mm (1.42")
L2: 22.0mm (.866")
D: 8.7mm (0.34")
D1: 8.3mm (0.33")
D2: 12.7mm (0.50")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 170A

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUSD01904
Altech Corp: 2860.0 FID0225

American Electrical: 11253350

Greenlee: 479/25/16

Panduit: FSF86-25-L

Phoenix Contact: 3200713

Thomas Betts: F2052

Tyco AMP: 3-966 067-3

Weidmuller: 9019330000

ZF: V3AE0069


Documents

Click to view product spec sheet:
