AD500020 - 1 AWG (20mm Pin) Insulated Ferrules - Blue
Original price
$12.42
-
Original price
$12.42
Original price
$12.42
$12.42
-
$12.42
Current price
$12.42
SKU AD500020
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
Altech Corp:2861.0 FID0120
American Electrical:11203500
Automation Direct:BM-00618 V3AE000070
Greenlee:480/20
Panduit:FSF87-20-L
Phoenix Conduit:3200454
Thomas Betts:F2053
Tyco AMP:3-966 067-4
Weidmuller:9019340000
ZF: V3AE0070 V3AE000070
Click to view product spec sheet:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 1 AWG |
Color: | Blue |
L1: | 36.0mm (1.42") |

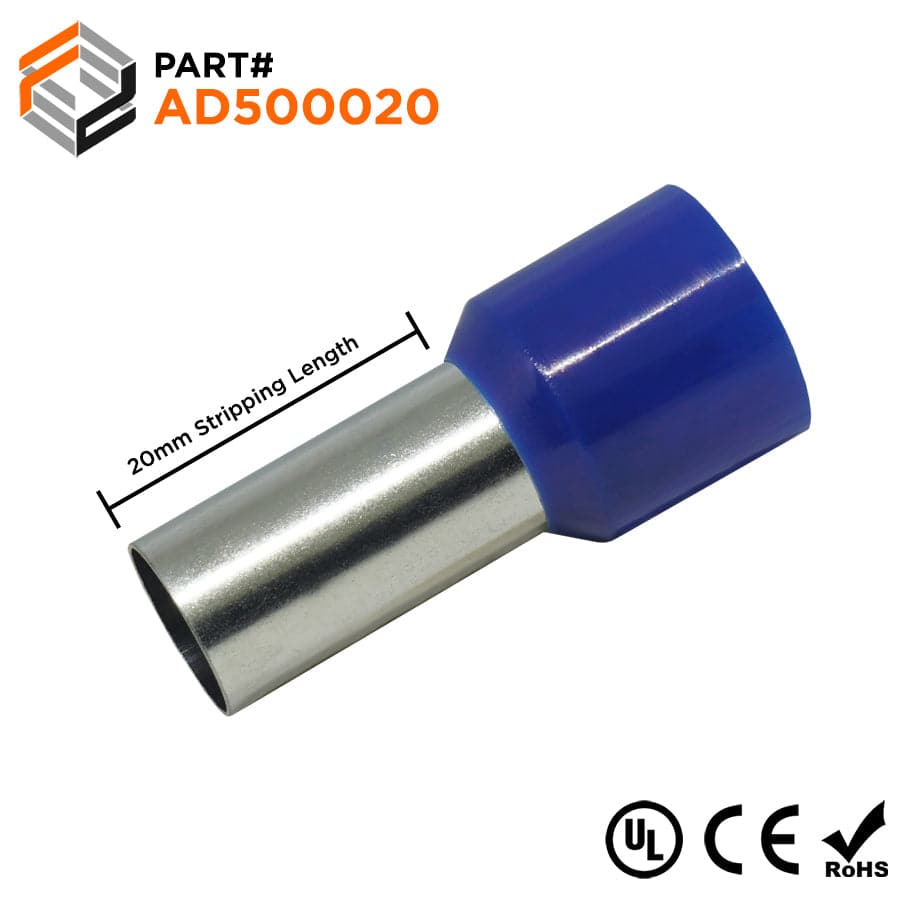

L2: | 20mm (0.78") |
D: | 10.9mm (0.42") |
D1: | 10.3mm (0.40") |
D2: | 15.0mm (0.59") |
UL Approved: | Yes |
CE Certfied: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | 105°C (221°F) - 600 Volts |
Max Electrical Current: | 195A |
Material: | Tin-Plated Copper |
