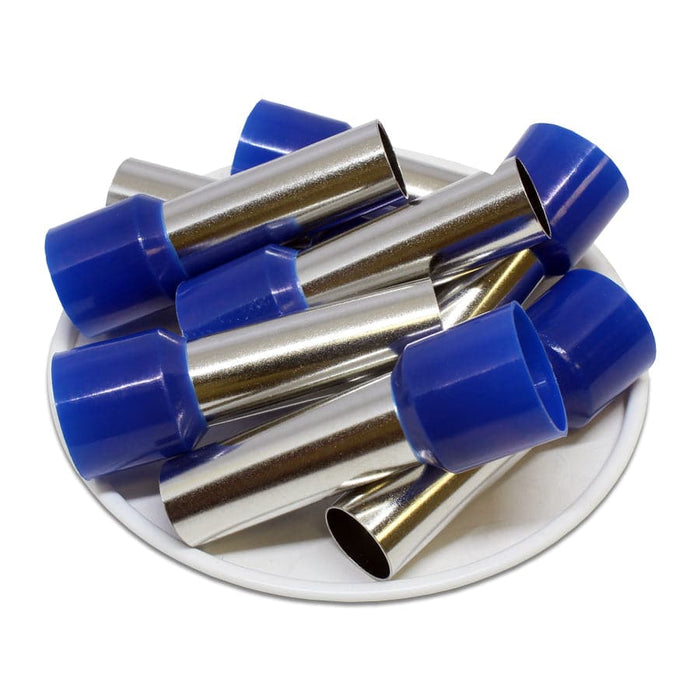

AD500030 - 1 AWG (30mm Pin) Insulated Ferrules - Blue
Original price
$18.52
-
Original price
$18.52
Original price
$18.52
$18.52
-
$18.52
Current price
$18.52
SKU AD500030
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
Altech Corp:FID0130
ZF:V3AE0071
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Blue |
| L1: | 45.0mm (1.81") |

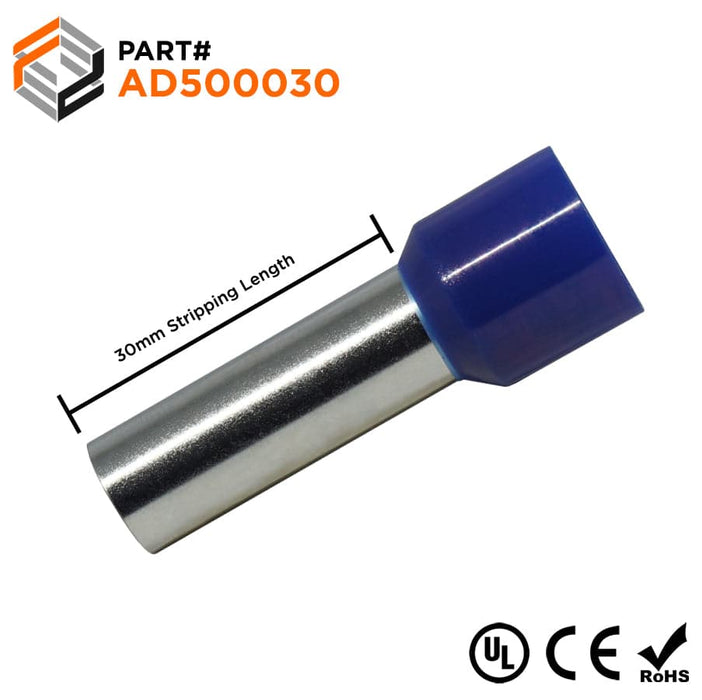

| L2: | 30.0mm (1.18") |
| D: | 10.9mm (0.42") |
| D1: | 10.3mm (0.40") |
| D2: | 15.0mm (0.59") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 195A |
| Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
Cross Reference Parts:Altech Corp:FID0130
ZF:V3AE0071
Documents
Click to view product spec sheet:
Videos
How to Crimp a Wire Ferrule?
