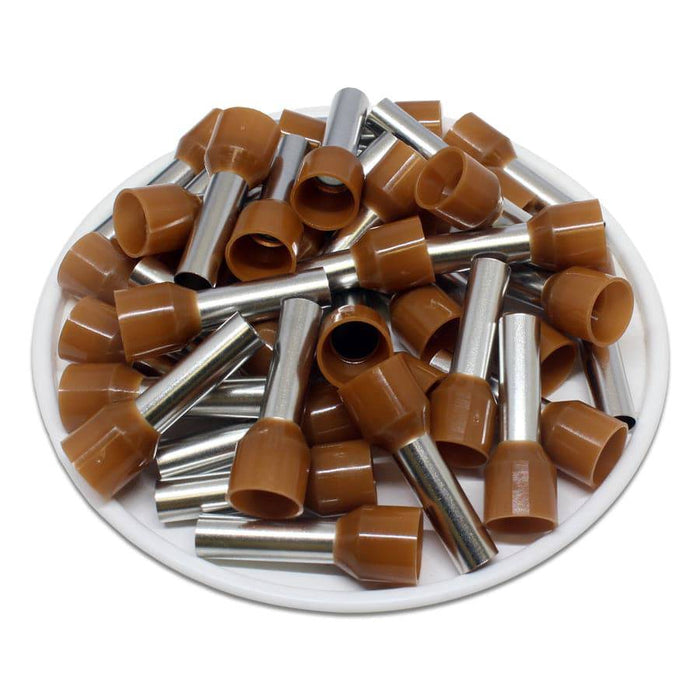

AT100015 - 8 AWG (15mm Pin) Insulated Ferrules - Brown
Original price
$6.12
-
Original price
$6.12
Original price
$6.12
$6.12
-
$6.12
Current price
$6.12
SKU AT100015
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 8 AWG |
Color: | Brown |
Material: | Tin Plated Copper |
Max Electrical Rating: | 105°C - 600 Volts |
Max Electrical Current: | 70A |
L1: | 23.6mm (0.93") |

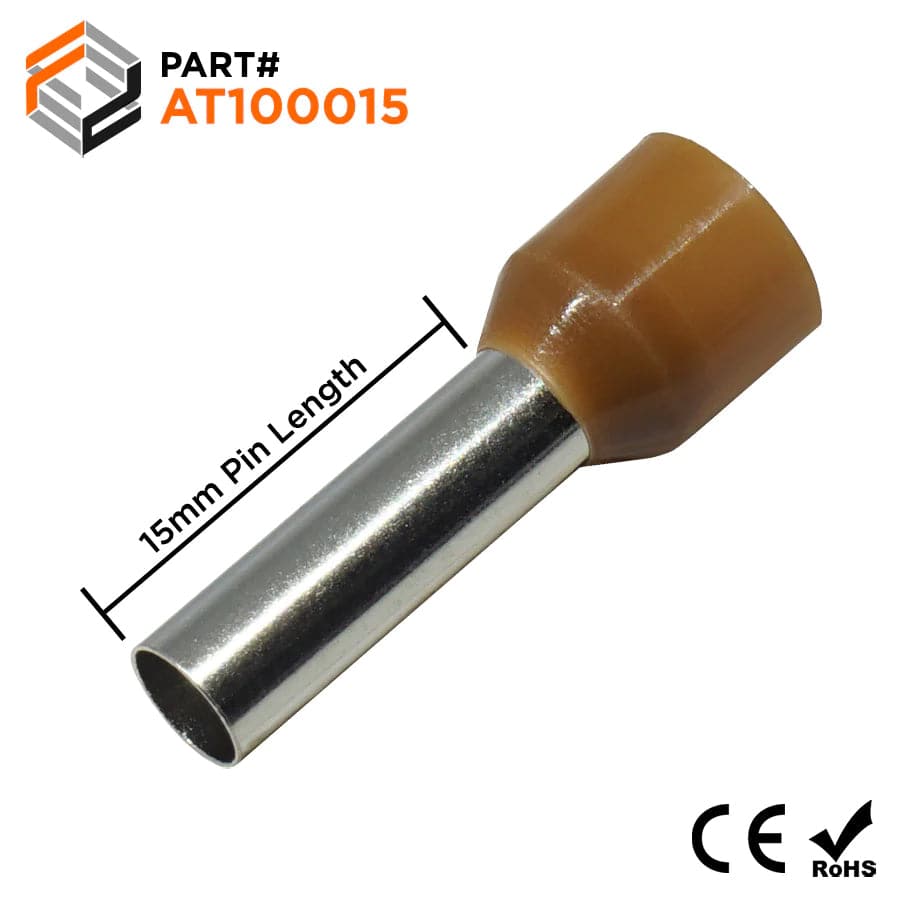

L2: | 15.0mm (0.59") |
D: | 4.9mm (0.19") |
D1: | 4.5mm (0.17") |
D2: | 7.6mm (0.29") |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
