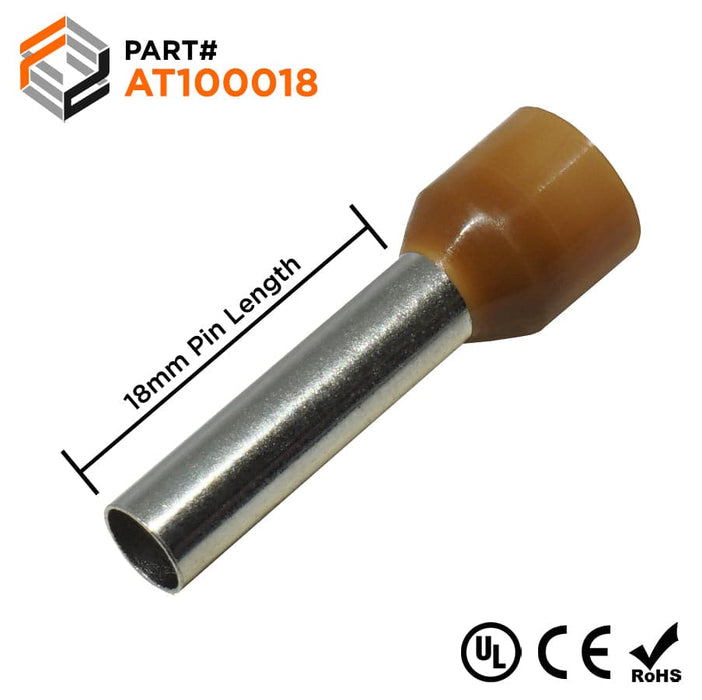

AT100018 - 8 AWG (18mm Pin) Insulated Ferrules - Brown

Original price $6.74 - Original price $6.74
Original price
$6.74
$6.74 - $6.74
Current price $6.74
SKU AT100018
Availability:
in stock, ready to be shipped

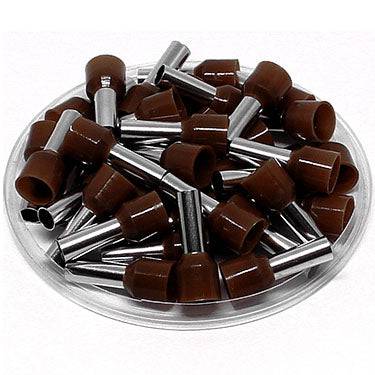

Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 8 AWG
Color: Brown
Material: Tin-Plated Copper
L1: 28mm (1.10")
L2: 18mm (0.71")
D: 4.9mm (0.19")
D1: 4.5mm (0.17")
D2: 7.6mm (0.29")
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 70A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUS001886
American Electrical: 11183100
Greenlee: 176/18
Panduit: FSF83-18-C
Phoenix Contact: 3200137
Tyco AMP: 3-966 292-0
Weidmuller: 9021160000
ZF: V3AE0554

Documents

Click to view product spec sheet:
