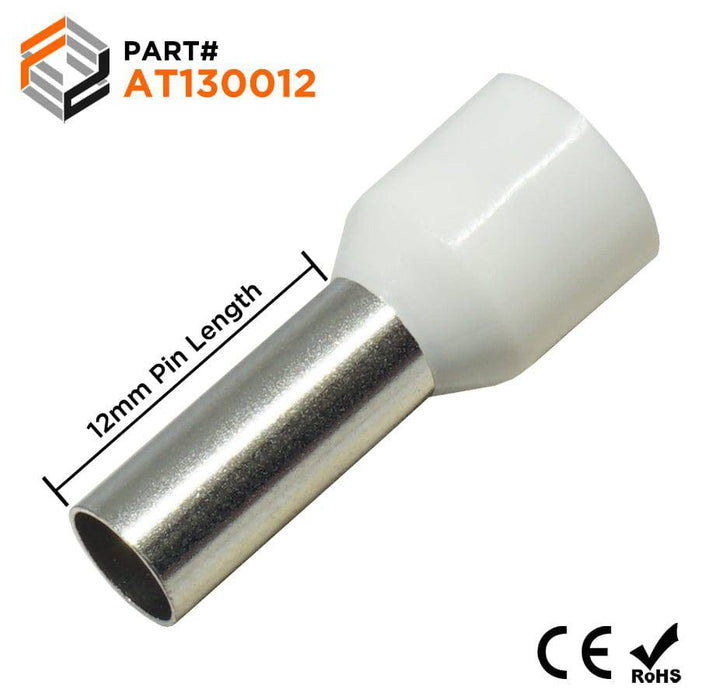

AT130012 - True 6 AWG (12mm Pin) Insulated Ferrules - White

Original price $6.76 - Original price $6.76
Original price
$6.76
$6.76 - $6.76
Current price $6.76
SKU AT130012
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 6 AWG
Color: White
L1: 22.0mm (0.87")
L2: 12.0mm (0.47")
D: 5.2mm (0.20")
D1: 4.7mm (0.18")
D2: 7.5mm (0.29")
Max Electrical Rating: 105oC (221oF - 600 Volts
Max Electrical Current: 95A
Material: Tin Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
