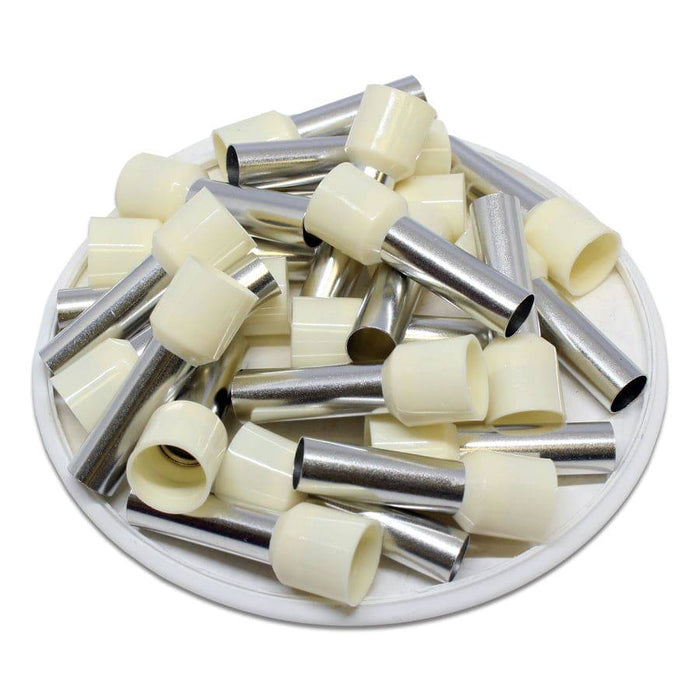

6AWG (18mm Pin) Insulated Ferrules - White

$7.45
SKU AT160018
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 6 AWG
Color: White
Material: Tin-Plated Copper
L1: 28mm (1.10")

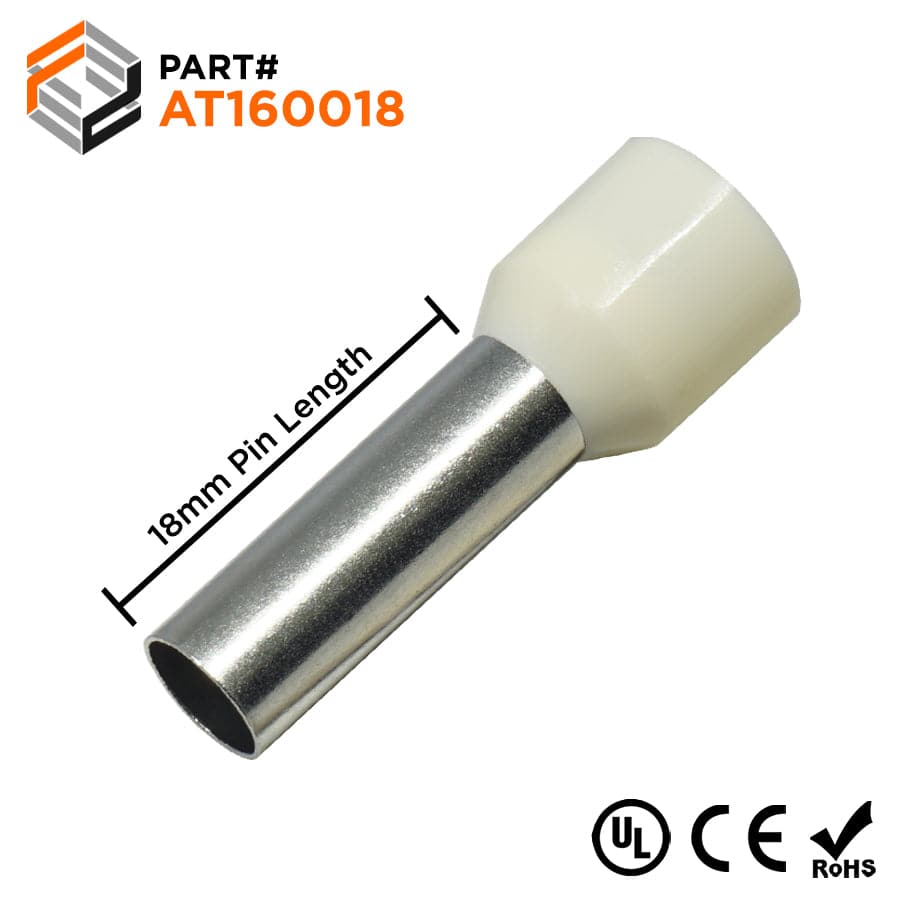

L2: 18mm (0.71")
D: 6.2mm (0.24")
D1: 5.8mm (0.28")
D2: 8.8mm (0.35")
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 95A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUS001890
American Electrical: 11123160
Greenlee: 177/18
LeGrand: 376 70
Panduit: FSF84-18-C
Phoenix Contact: 3200153
Tyco AMP: 3-966 292-2
Weidmuller: 9021180000
ZF: V3AE0555
