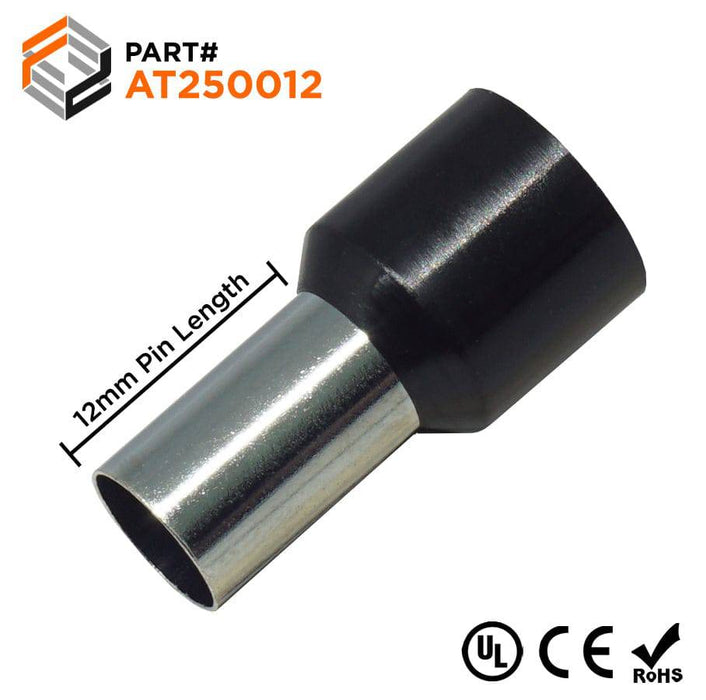

AT250012 - 4 AWG (12mm Pin) Insulated Ferrules - Black

Original price $11.39 - Original price $11.39
Original price
$11.39
$11.39 - $11.39
Current price $11.39
SKU AT250012

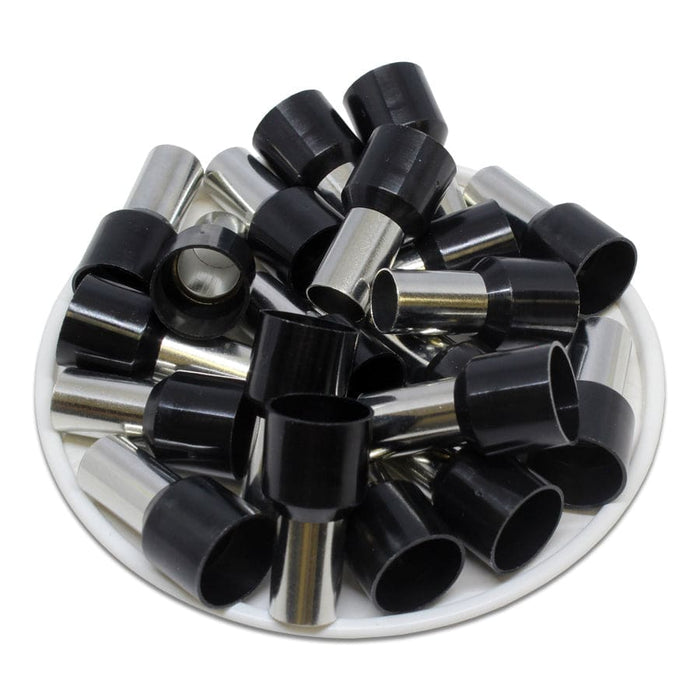

Pack Quantity: 100 Pieces
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 4 AWG UL Approved: Yes
Color: Black CE Certified: Yes
L1: 24.0mm (.945") RoHS Compliant: Yes
L2: 12.0mm (.472") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 7.7mm (.303") Max Electrical Current: 125A
D1: 7.3mm (.287") Material: Tin Plated Copper
D2: 11.2mm (.441")

TECHNICAL DRAWING

Cross Reference Parts:

None

Click to view data sheet

How to Crimp a Wire Ferrule?
