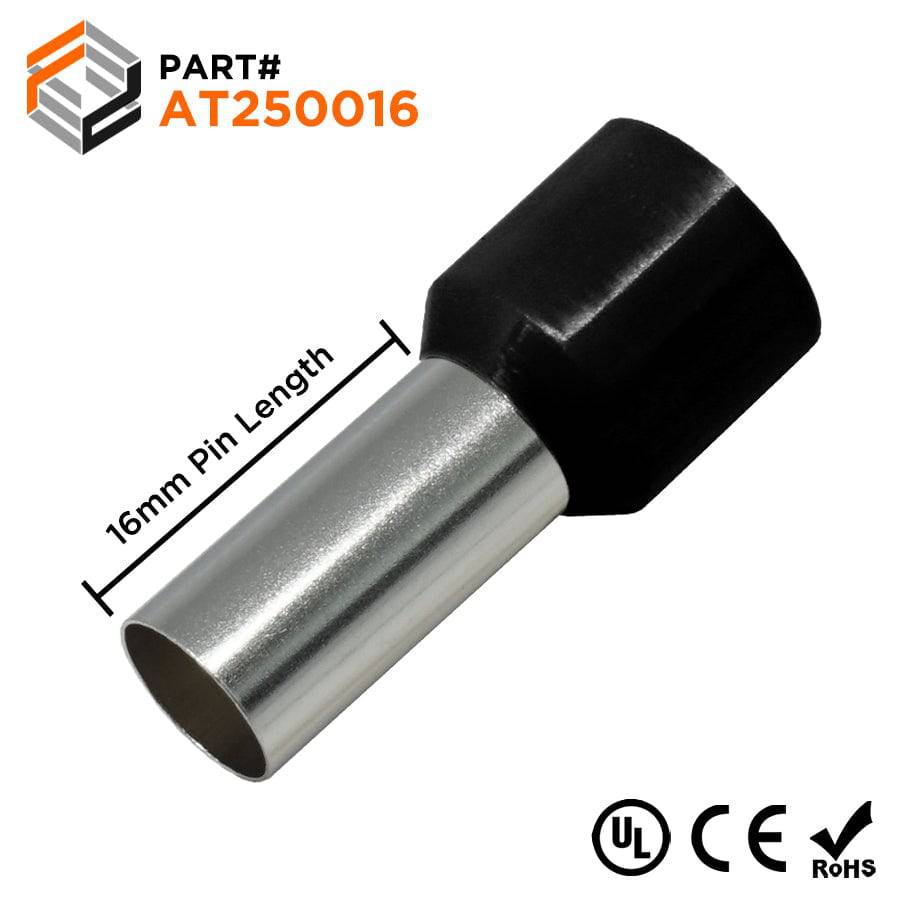

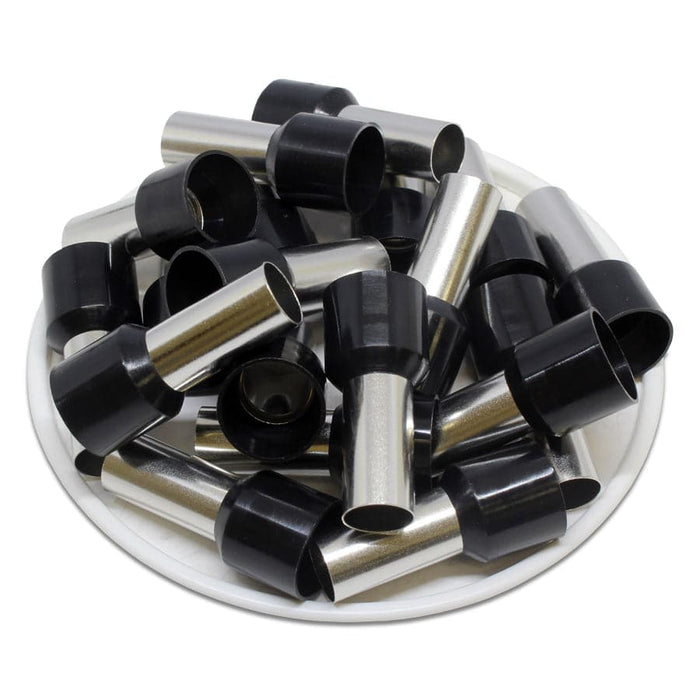

AT250016 - 4 AWG (16mm Pin) Insulated Ferrules - Black
$10.87
SKU AT250016
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB: XUS001893
American Electrical: 11163250
Crimp Supply: 13A11019
Panduit: FSF85-16-L
Phoenix Contact: 3200412
Tyco AMP: 3-966 292-3
Weidmuller: 9021190000
ZF: V3AE0543
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 4 AWG |
| Color: | Black |
| L1: | 28.0mm (1.10") |
| L2: | 16.0mm (.630") |
| D: | 7.7mm (.303") |
| D1: | 7.3mm (.287") |
| D2: | 11.2mm (.441") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 125A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUS001893
American Electrical: 11163250
Crimp Supply: 13A11019
Panduit: FSF85-16-L
Phoenix Contact: 3200412
Tyco AMP: 3-966 292-3
Weidmuller: 9021190000
ZF: V3AE0543
