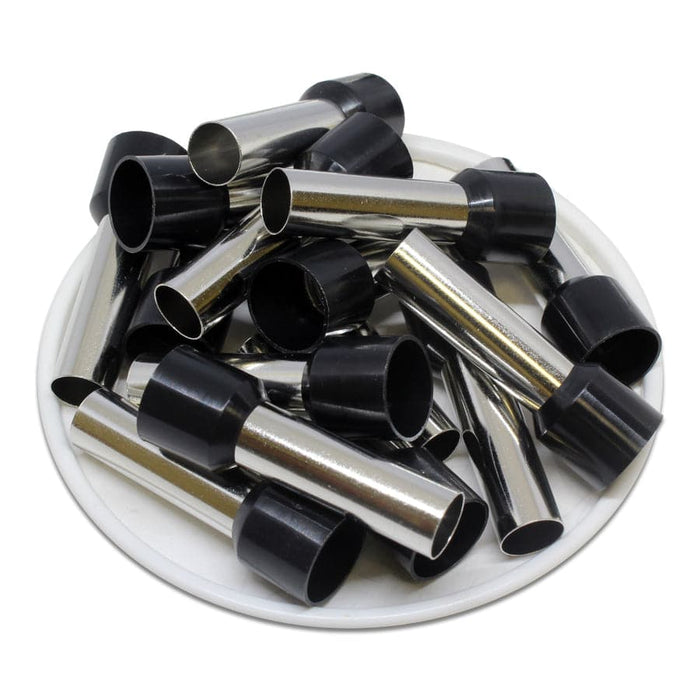

AT250025 - 4 AWG (25mm Pin) Insulated Ferrules - Black

Original price $15.27 - Original price $15.27
Original price
$15.27
$15.27 - $15.27
Current price $15.27
SKU AT250025
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4 AWG
Color: Black
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 125A
L1: 37mm (1.45")

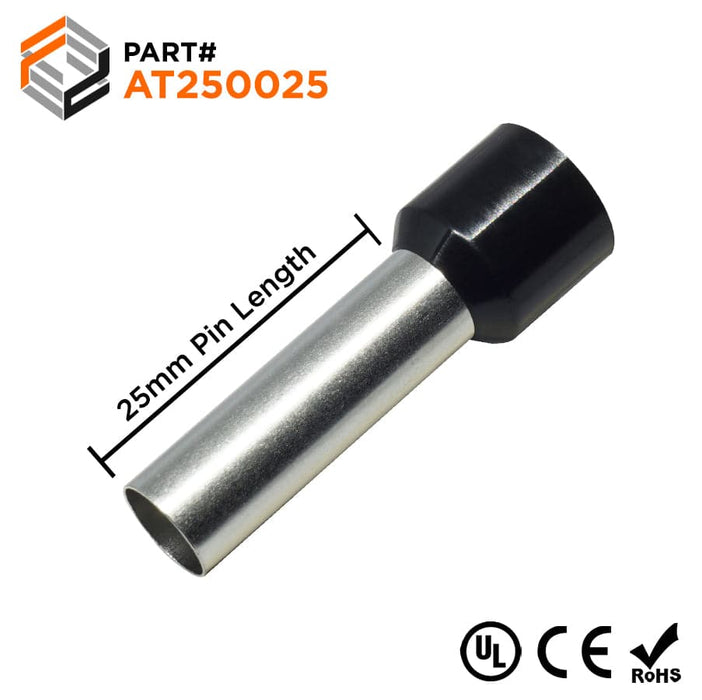

L2: 25.0mm (0.98")
D: 7.7mm (0.30")
D1: 7.3mm (0.28")
D2: 11.2mm (0.16")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
