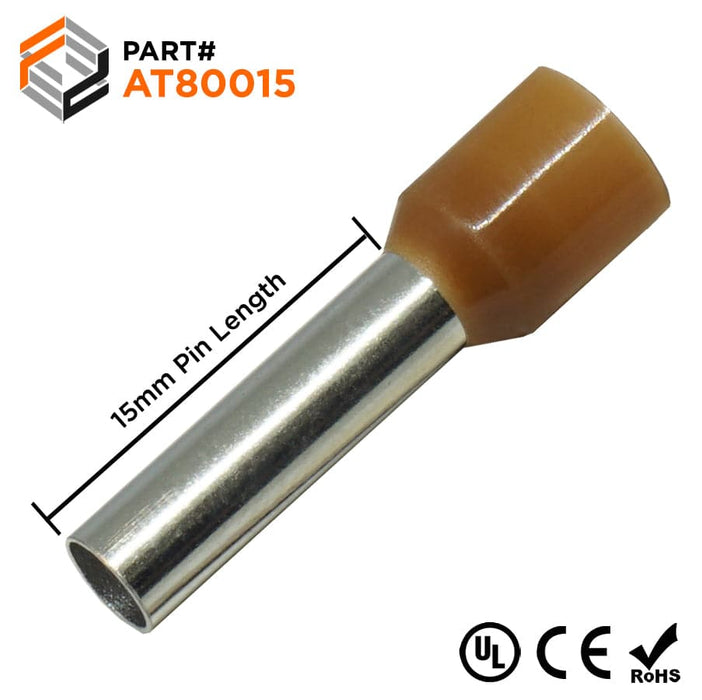

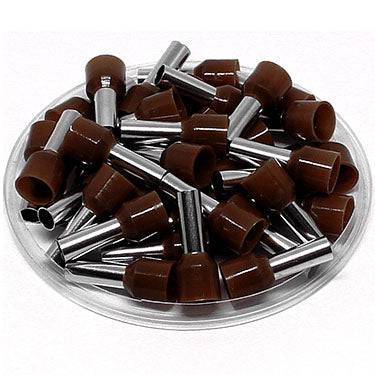

AT80015- True 8 AWG (15mm Pin) Insulated Ferrules - Brown
Original price
$7.54
-
Original price
$7.54
Original price
$7.54
$7.54
-
$7.54
Current price
$7.54
SKU AT80015
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | True 8 AWG |
| Color: | Brown |
| Material: | Tin-Plated Copper |
| L1: | 23.6mm (.929") |
| L2: | 15.0mm (.591") |
| D: | 4.2mm (.165") |
| D1: | 3.7mm (.147") |
| D2: | 5.7mm (.224") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 70A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
