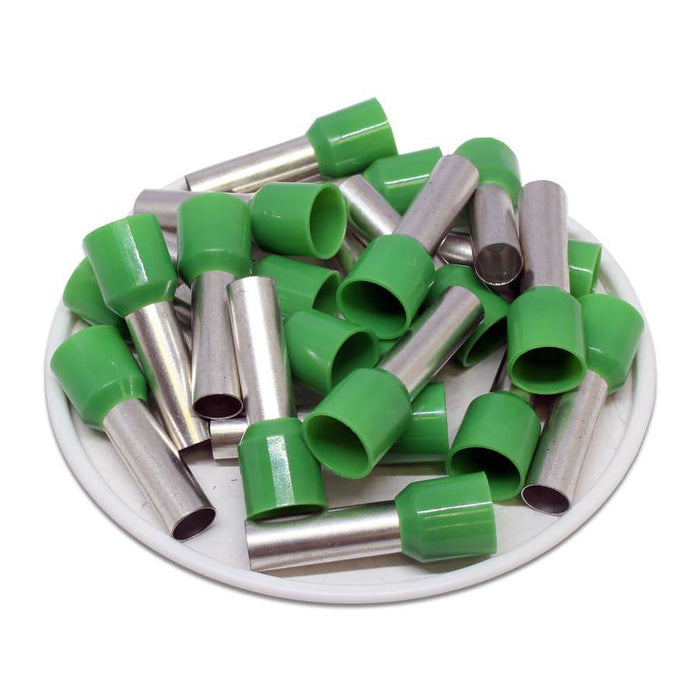

6 AWG (18mm Pin) Insulated Ferrules - Green

$7.45
SKU AW160018
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 6 AWG UL Approved: Yes
Color: Green CE Certified: Yes
L1: 28.0mm (1.10") RoHS Compliant: Yes
L2: 18.0mm (.709") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 6.2mm (.244") Max Electrical Current: 95A
D1: 5.8mm (.288") Material: Tin Plated Copper
D2: 8.8mm (.346")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSG01889
Altech Corp: 2215.0 FII0618
American Electrical: 11182160
AUTOMATION DIRECT: BM-00515
Eclipse: 701-021
Greenlee: 177/GRL
Phoenix Contact: 3201330
Tyco AMP: 3-966 066-7
Weidmuller: 566000000
ZF: V3AE0030

Click to view data sheet

How to Crimp a Wire Ferrule?
