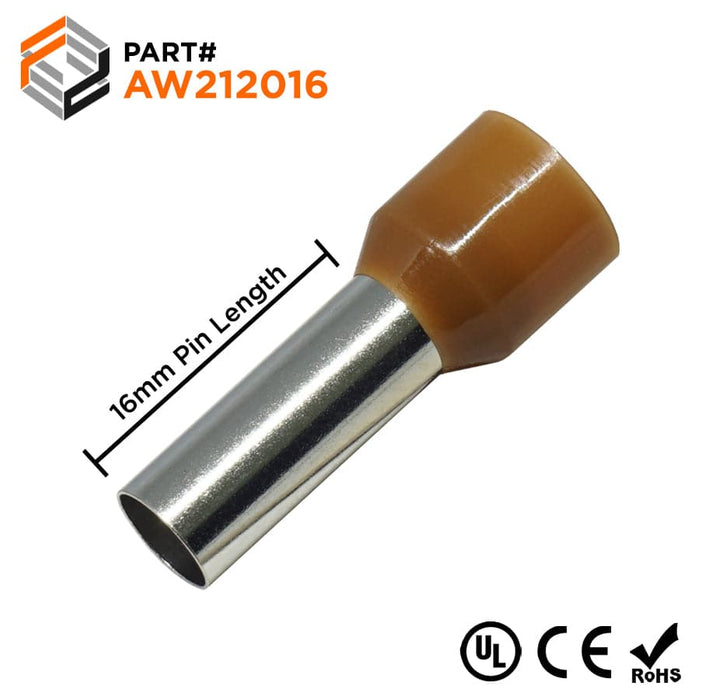

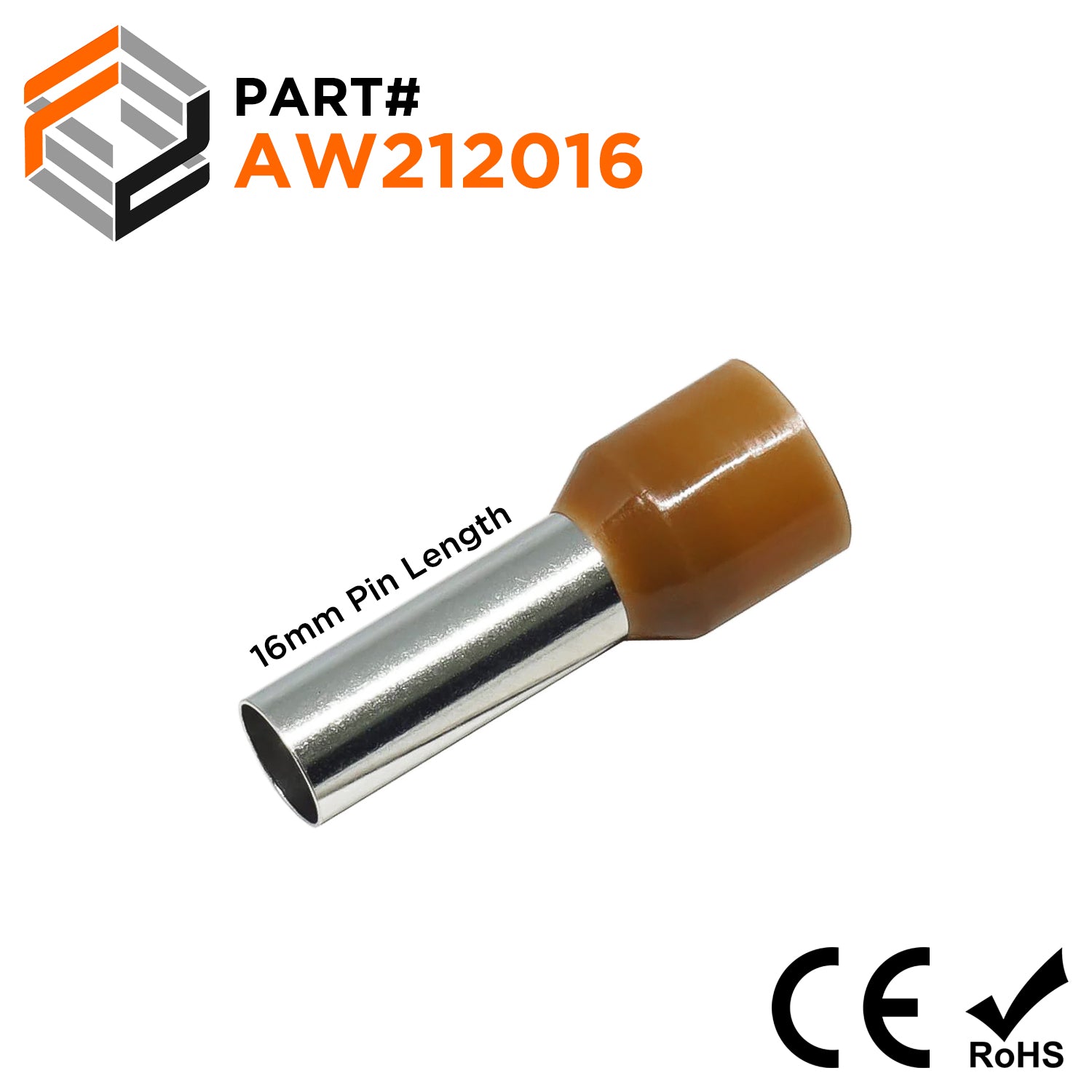

AW212016 - True 4 AWG (16mm Pin) Insulated Ferrules - Brown

Original price $11.62 - Original price $11.62
Original price
$11.62
$11.62 - $11.62
Current price $11.62
SKU AW212016
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 4 AWG
Color: Brown
L1: 28.0mm (1.10")
L2: 16.0mm (.630")
D: 6.3mm (.248")
D1: 5.9mm (.230")
D2: 9.0mm (.354")
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 125A
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
