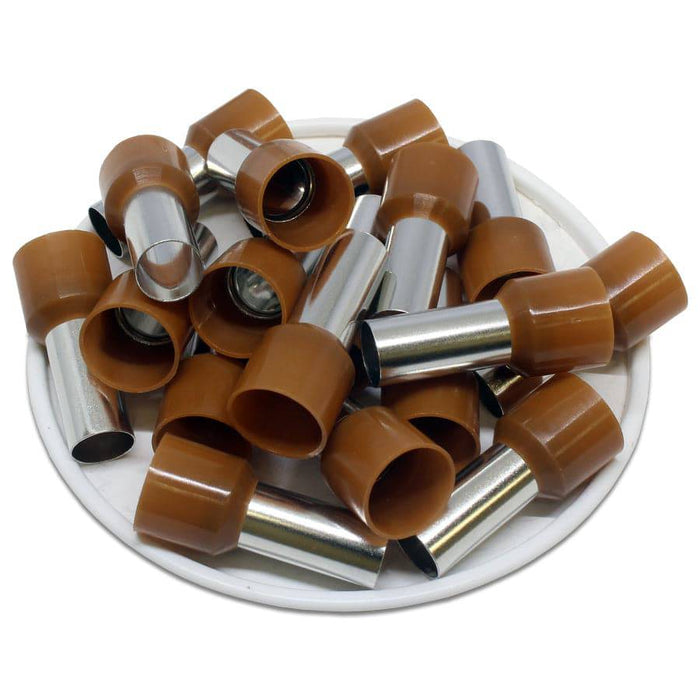

AW250016 - 4 AWG (16mm Pin) Insulated Ferrules - Brown

Original price $10.87 - Original price $10.87
Original price
$10.87
$10.87 - $10.87
Current price $10.87
SKU AW250016
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 4 AWG
Color: Brown
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 125A
L1: 28mm (1.10")

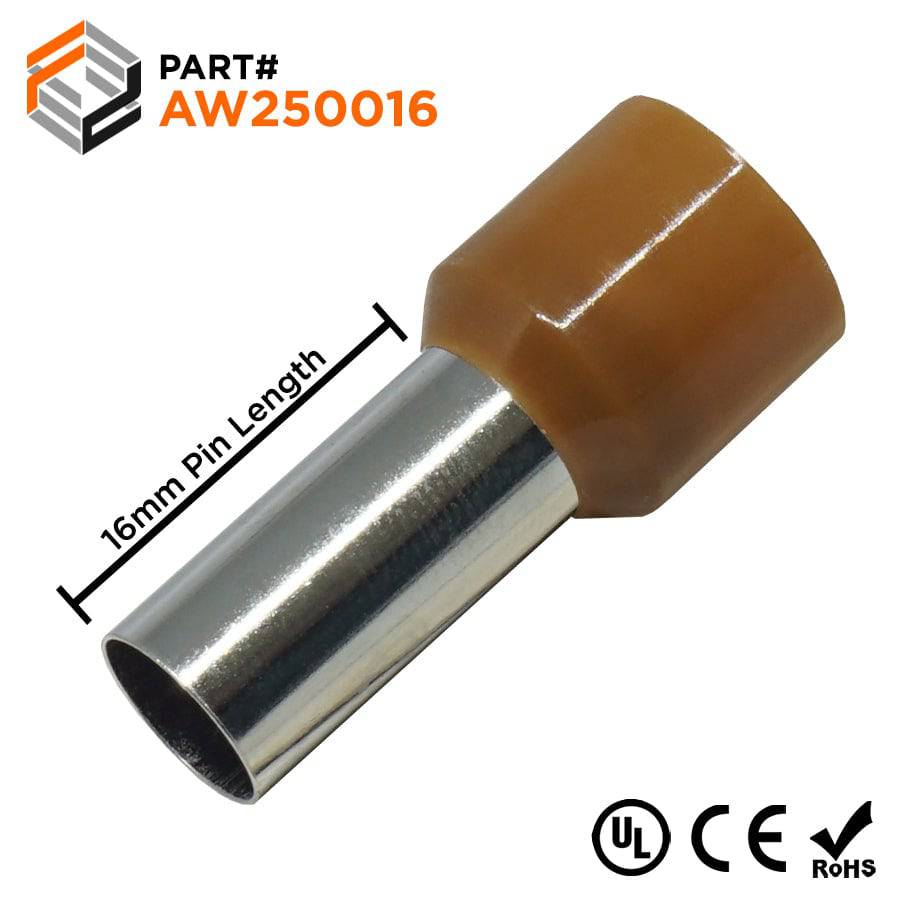

L2: 16.0mm (0.63")
D: 7.7mm (0.30")
D1: 7.3mm (0.28")
D2: 11.2mm (0.44")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUSG01892
Altech Corp: 2267.0 FII0416
American Electrical: 11162250
Automation Direct: BM-00516 V3AE000031
Eclipse: 701-042
GE Renewable Energy:
104W4400P011
Greenlee: 178/BR
Phoenix Contact: 3201084
SPC Technology: SPC4501 84N2035
Tyco AMP: 3-966 066-8
Weidmuller: 317000000
ZF: V3AE0031 V3AE000031
