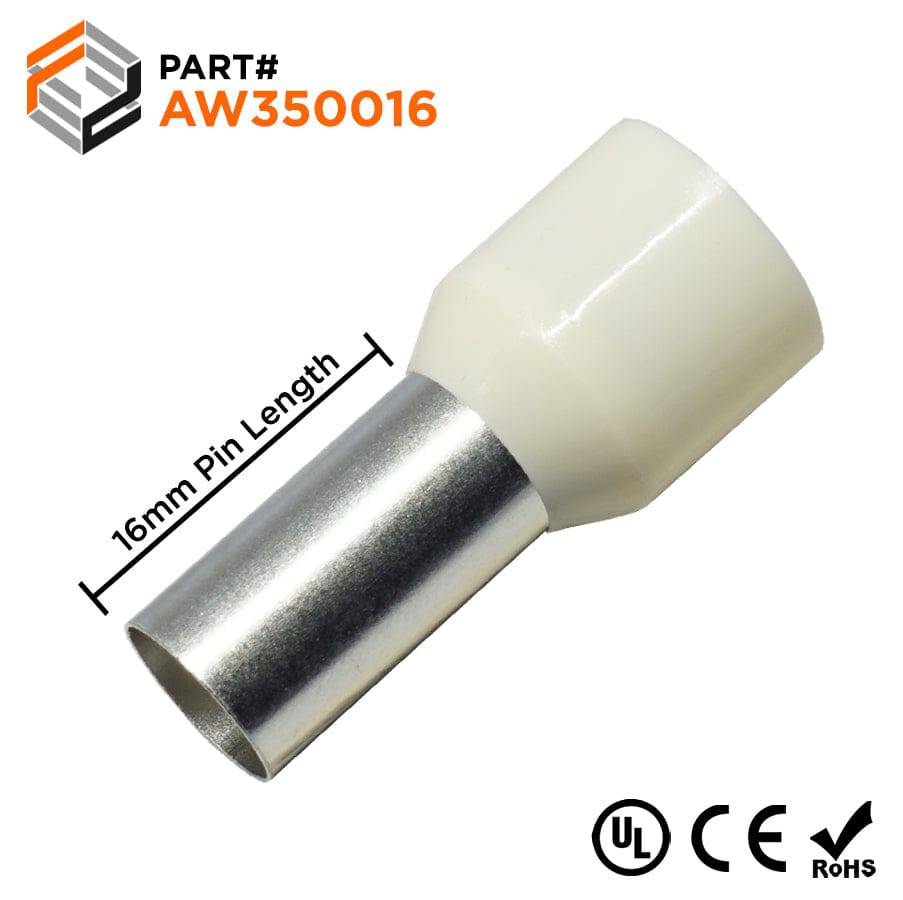

2 AWG (16mm Pin) Insulated Ferrules - Beige

$13.82
SKU AW350016
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2 AWG
Color: Beige
L1: 30mm (1.18")
L2: 16mm (0.63")
D: 8.7mm (0.34")
D1: 8.3mm (0.33")
D2: 12.7mm (0.50")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 170A

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUSG01900
Altech Corp: 2276.0 FII0216

American Electrical: 11162350

Automation Direct: BM-00517

Crimp Supply: 13A11020

Eclipse: 701-044

Greenlee: 479/25/16

McMaster-Carr: 7950K2

Panduit: FSF86-25-L

Phoenix Contact: 3201071

Tyco AMP: 4-966 066-0

Weidmuller: 317200000

ZF: V3AE0033
