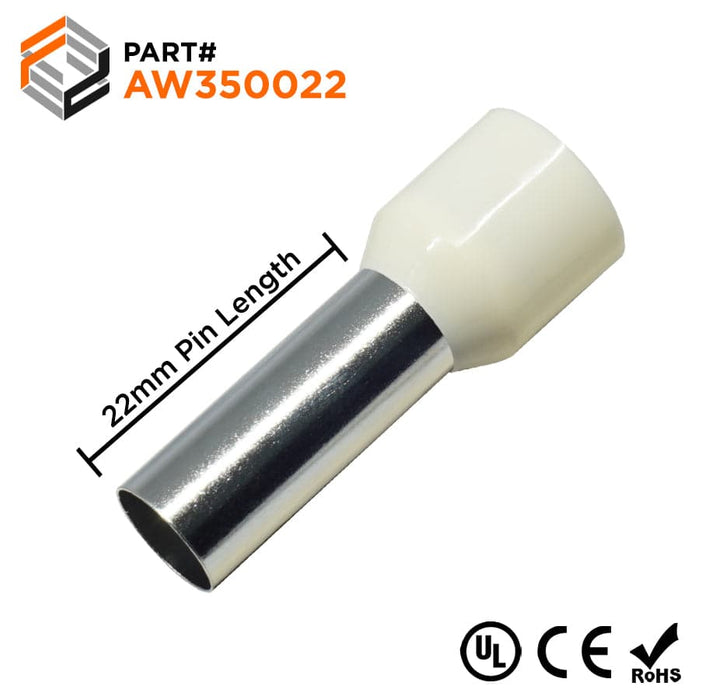

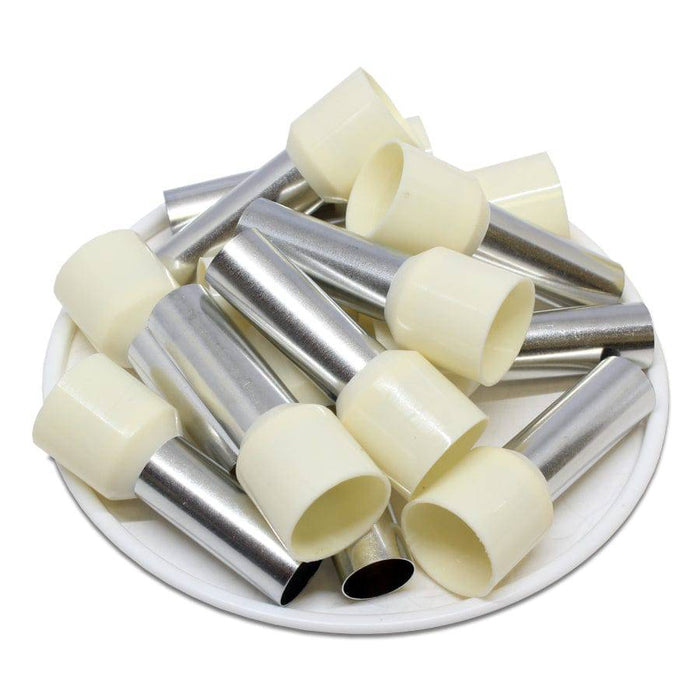

AW350022 - 2 AWG (22mm Pin) Insulated Ferrules - Beige
Original price
$15.73
-
Original price
$15.73
Original price
$15.73
$15.73
-
$15.73
Current price
$15.73
SKU AW350022
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 2 AWG |
Color: | Beige |
L1: | 36.0mm (1.42") |
L2: | 22.0mm (.866") |
D: | 8.7mm (0.34") |
D1: | 8.3mm (0.33") |
D2: | 12.7mm (0.50") |
Material: | Tin Plated Copper |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | 105°C - 600 Volts |
Max Electrical Current: | 170A |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/WireFerruleDrawing2_bca0162b-5cca-4380-8d04-0305c6ea4cb7_600x600.jpg?v=1578947147)
Cross References
Cross Reference Parts:None
