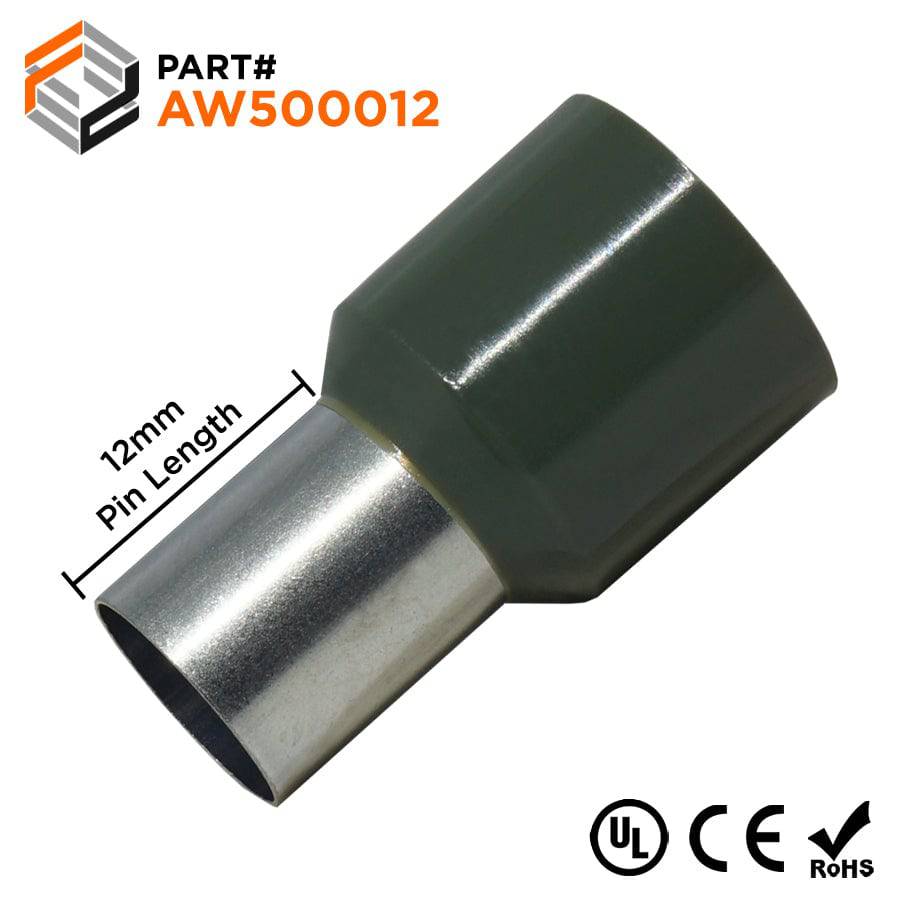

AW500012 - 1 AWG (12mm Pin) Insulated Ferrules - Olive Green
Original price
$13.82
-
Original price
$13.82
Original price
$13.82
$13.82
-
$13.82
Current price
$13.82
SKU AW500012
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
None
Click to view product spec sheet:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 1 AWG |
Color: | Olive Green |
L1: | 28mm (1.10") |
L2: | 12mm (0.47") |
D: | 10.9mm (0.43") |
D1: | 10.3mm (0.41") |
D2: | 15mm (0.59") |
UL Approved: | Yes |
CE Certfied: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | 105oC (221oF) - 600 Volts |
Max Electrical Current: | 195A |
Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
How to Crimp a Wire Ferrule?
