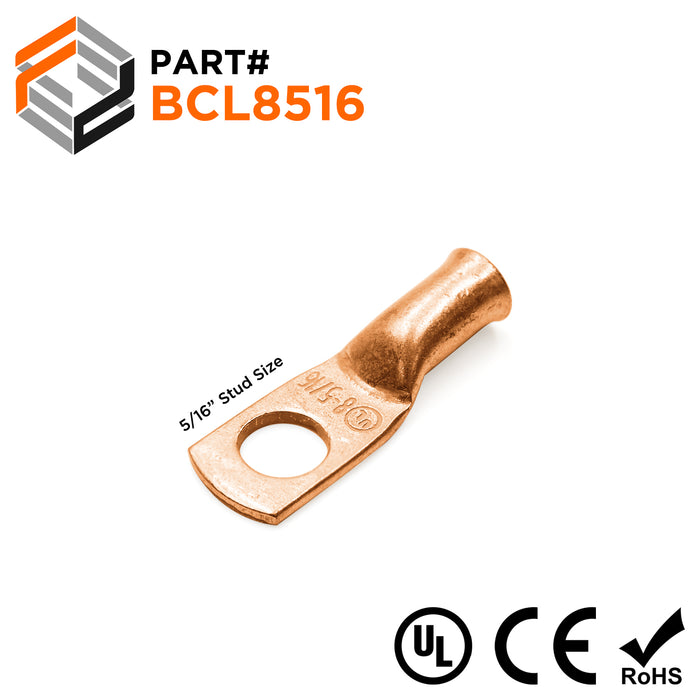

BCL8516 - 8 AWG Copper Battery Cable Lugs, 5/16" Stud, UL Recognized - 1 Piece
Original price
$0.53
-
Original price
$0.53
Original price
$0.53
$0.53
-
$0.53
Current price
$0.53
SKU BCL8516
Availability:
in stock, ready to be shipped

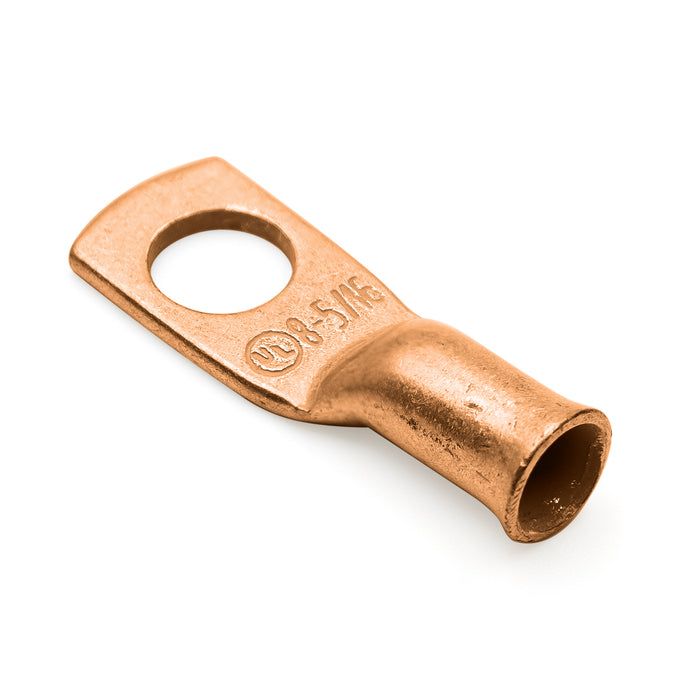

COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper ✓
- Thick & Durable ✓
- UL Approved ✓
- RoHS & REACH Compliant ✓
- CE Certified ✓
DIMENSIONS & FEATURES:
| Wire Size: | 8 AWG |
| L: | 33.4mm (1.31") |
| L1: | 8.9mm (0.35") |
| D: | 11.8mm (0.47") |
| D1: | 7.1mm (0.28") |
| D2: | 4.8mm (0.19") |
| B: | 11.9mm (0.47") |
| E: | 8.1mm (0.32") |
| F: | 1.4mm (0.05") |
| Terminal Material: | Copper |
| Stud Size: | 5/16" |
| Temperature Rating: |
90°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
