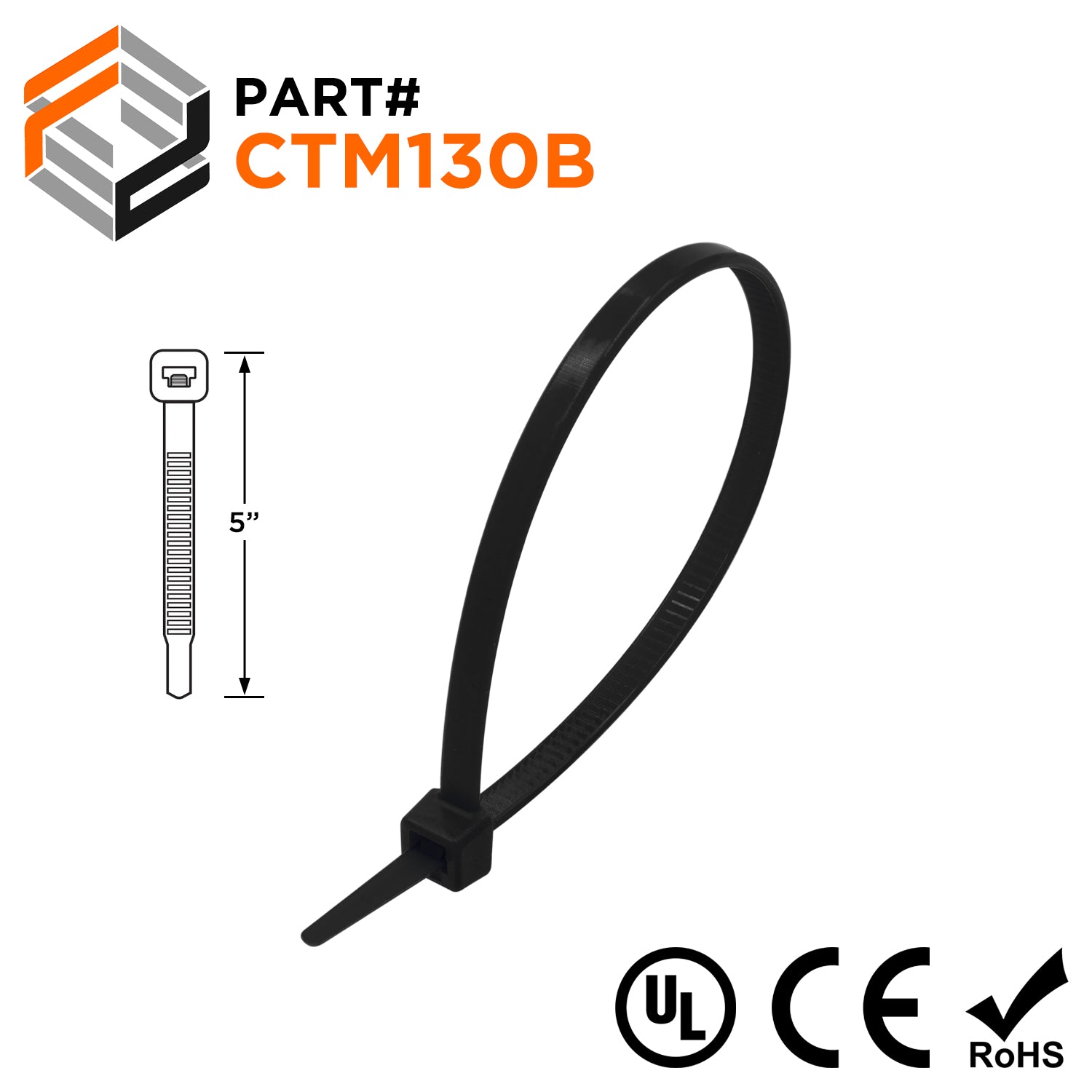

5" Miniature Cable Ties, 18-lb Tensile Strength, Black, UV Resistant, UL Approved, 100-Pack - CTM130B

Sold out
Original price $1.50 - Original price $1.50
Original price
$1.50
$1.50 - $1.50
Current price $1.50
SKU CTM130B
Availability:
Out of stock
Pack Quantity: 100 Pieces

NYLON CABLE TIES - MINIATURE SERIES

A cable tie is a band or length of strap, manufactured from materials known as polyamides (Nylon 6/6). The width, length, and head of the cable tie has a ratcheting mechanism, that allows for locking or bundling items together.

These cable ties have an excellent resistance to oils, oil derivatives, and chloride solvents. Limited resistance to acids. No resistance to phenols.



DIMENSIONS & FEATURES:

Length: 5 inches (130mm)
Width: 0.10-inches (2.5mm)
Color: Black
Maximum Bundle Diameter: 1.18-inches (30mm)
Minimum Bundle Diameter: 0.12-inches (3mm)
Tensile Strength: 18-lbs(8kg)
Material: Nylon 6/6
Material Brand: Dupont, Ascend
Flammability: UL 94 V-2
Gamma Resistance: 1x10 Rads
Operating Temperature: -40oF to 185oF (-40oC to 85oC)
Max Sustainable Temperature (Short Time): -14oF to 185oF (10oC to 85oC)
UV Resistant: Yes
UL Approved: Yes
TUV Approved: Yes
REACH Compliant: Yes
RoHS Compliant: Yes


DRAWING:



DOCUMENT FILE:
