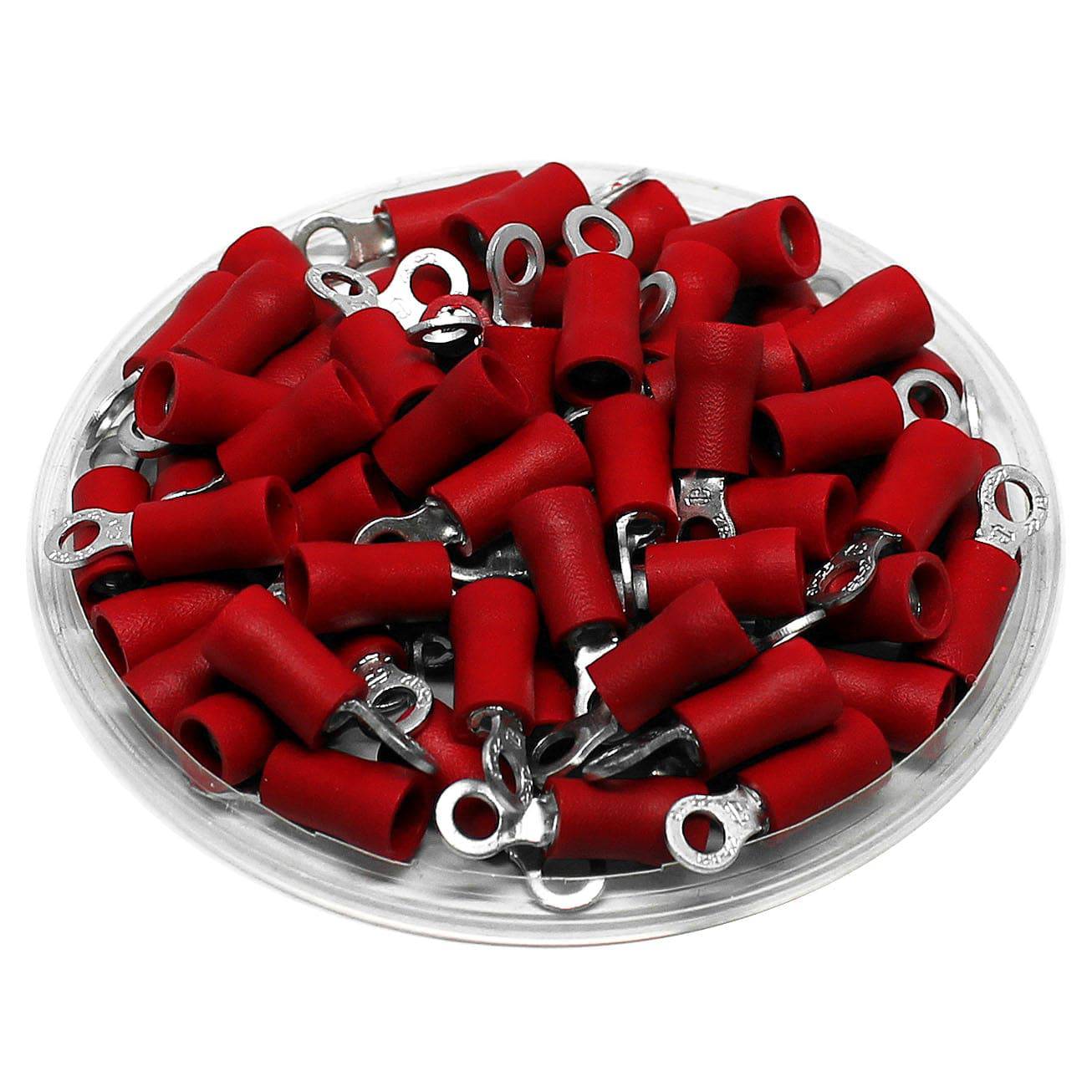

DRVB2-1 -DIN 46237 Vinyl Ring Terminal Brazed 22-16 AWG - #2 Stud - 100/pk

Name: DRVB2-1 -DIN 46237 Vinyl Ring Terminal Brazed 22-16 AWG - #2 Stud - 100/pk
Brand: Ferrules Direct
SKU: DRVB2-1
Price: 8.74 USD
Availability: InStock

$8.74 - $8.74

$8.74

$8.74 - $8.74

$8.74

SKU DRVB2-1

Pack Quantity: 100 Pieces

Availability:

in stock, ready to be shipped

Quantity

true

DIN 46237 VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards. The Deutsches Institut für Normung (DIN) 46237 is a German standard that defines the design, dimensions, material properties, and testing requirements for various types of electrical connectors. This standard is widely recognized in Europe and other regions as a benchmark for quality and reliability in electrical wiring applications.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	22-16 AWG
Stud Size	#2 Stud

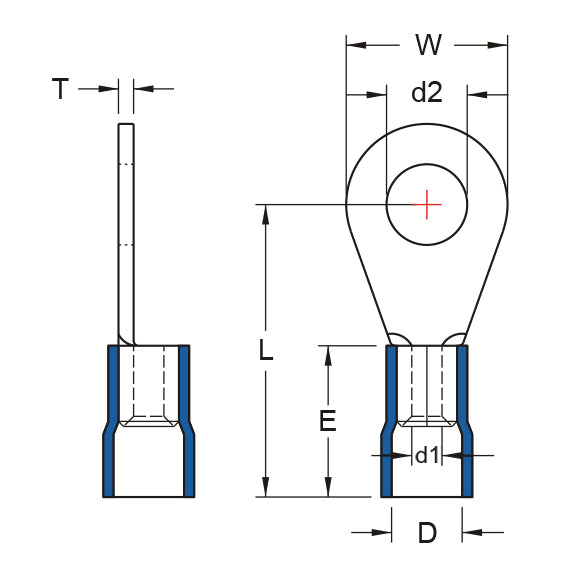

Overall Length (L)	16.0mm (0.63")
Full Barrel Length (E)	10mm (0.39")
Insulation Inner Diameter (D)	4.0mm (0.16")
Terminal Inner Diameter (D1)	1.6mm (0.06")
Stud Diameter (D2)	2.2mm (0.09")
Ring Width (W)	6.0mm (0.23")
Material	Tin Plated Copper
Maximum Electrical Rating	600 Volts
Maximum Electrical Current	18AMP
Maximum Operating Temperature	105°C (221°F)
UL File Number	E96029
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDT10010 \| FDT10011 \| FDT10012 \| QCL3C
Recommended Crimping Machines	FD110K
