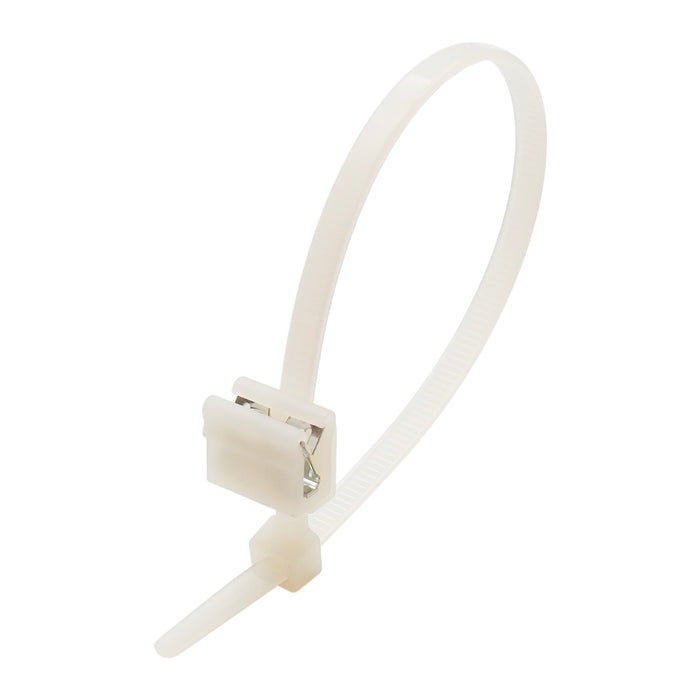

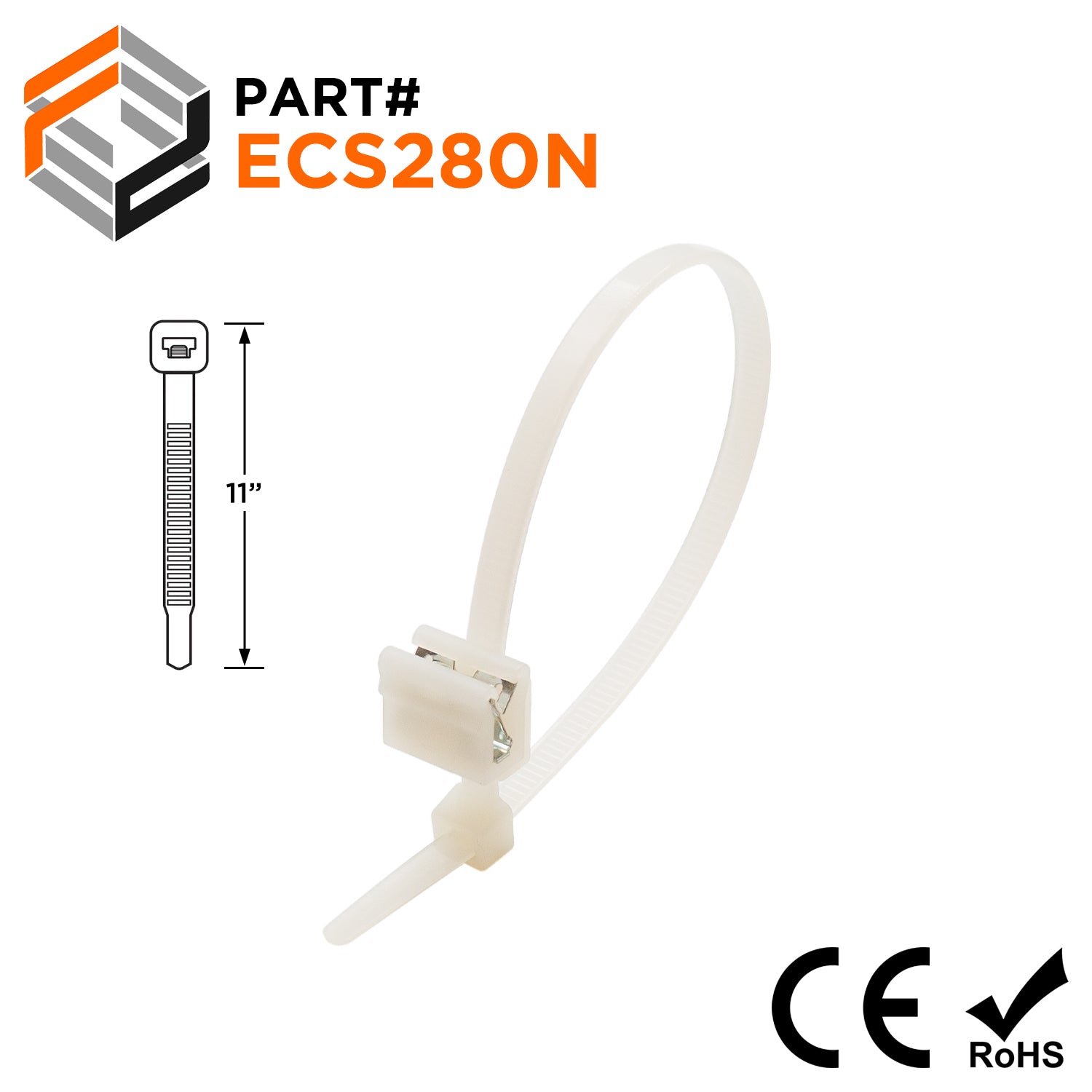

11" Standard Cable Ties with Edge Clip Mount, 50-lb Tensile Strength, Natural, 100-Pack - ECS280N

Original price $19.50 - Original price $19.50
Original price
$19.50
$19.50 - $19.50
Current price $19.50
SKU ECS280N
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
true

NYLON CABLE TIES: EDGE CLIP MOUNT SERIES

Cable Ties with Edge Clip Mounts apply easily to plastic and metal sheets without the need for a mounting hole. The edge clip design provides low insertion force and a high extraction force, that is ideal for assembly environments. The two piece assembly allows the mount to slide along the cable tie strap to ensure proper orientation.

  • Made of High Quality Heat Stabilized Nylon
  • Pre-assembled 2-Piece Design
  • Cable Tie Head can be moved after bundling
  • Compatible with Edges between 1/16" to 1/8" thickness

DIMENSIONS & FEATURES:

Length: 11.02" (280mm)
Width: 0.19" (4.8mm)
Color: Natural
Maximum Bundle Diameter: 2.94" (74.80mm)
Minimum Bundle Diameter: 0.19" (4.8mm)
Tensile Strength: 50lbs (22.67kg)
Edge Clip Range: 1/16" to 1/8" (1mm to 3mm)
Material: Nylon 6/6 HS (Heat Stabilized)
Flammability Rating: UL 94 V-2
Gamma Resistance: 1x10 Rads
Operating Temperature: -40°F to 239°F (-40°C to +85°C)
UV Resistant: No
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


DOCUMENT FILE:




COMPARE TO THESE PARTS:
