14" Standard Cable Ties with Edge Clip Mount, 50-lb Tensile, Black, UV Resistant, 100-Pack - ECS360B
Original price
$22.00
-
Original price
$22.00
Original price
$22.00
$22.00
-
$22.00
Current price
$22.00
SKU ECS360B
Availability:
in stock, ready to be shipped

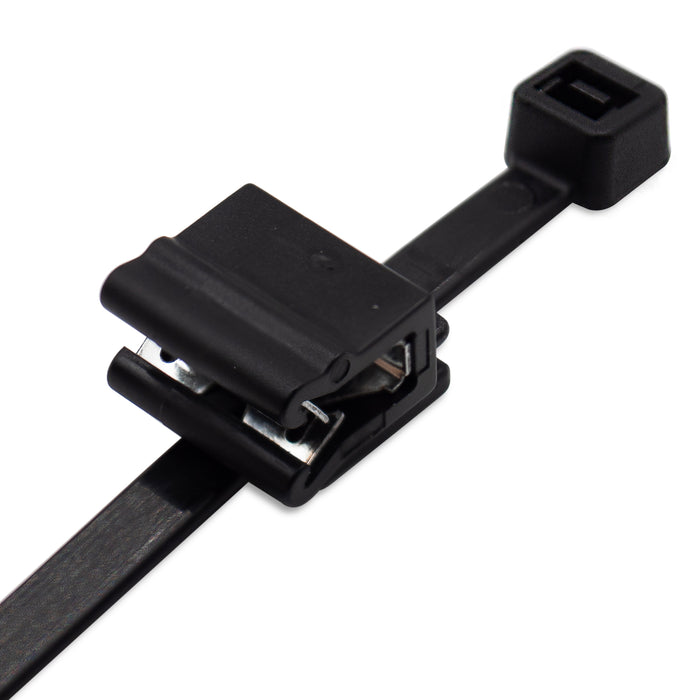

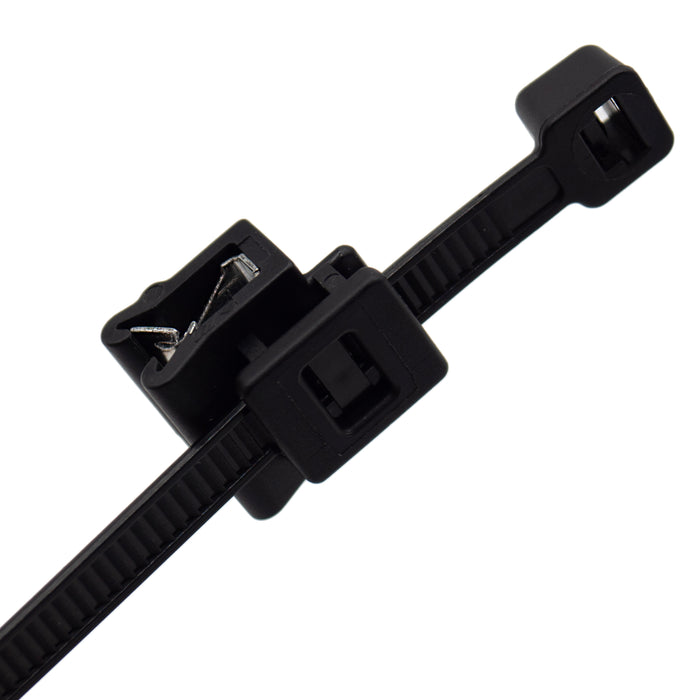

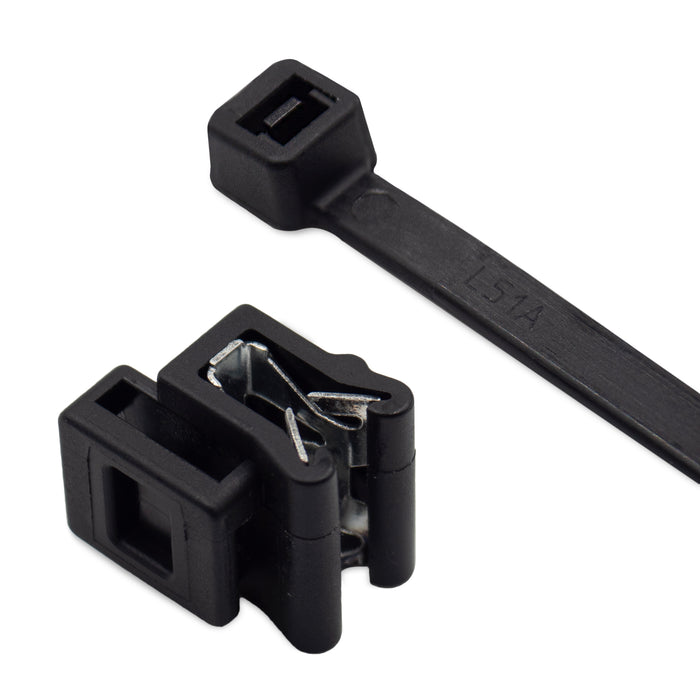

NYLON CABLE TIES: EDGE CLIP MOUNT SERIES
Cable Ties with Edge Clip Mounts apply easily to plastic and metal sheets without the need for a mounting hole. The edge clip design provides low insertion force and a high extraction force, that is ideal for assembly environments. The two piece assembly allows the mount to slide along the cable tie strap to ensure proper orientation.
- Made of High Quality Heat Stabilized Nylon ✓
- Pre-assembled 2-Piece Design ✓
- Cable Tie Head can be moved after bundling ✓
- Compatible with Edges between 1/16" to 1/8" thickness ✓
DIMENSIONS & FEATURES:
| Length: | 14.17" (360mm) |
| Width: | 0.19" (4.8mm) |
| Color: | Black |
| Maximum Bundle Diameter: | 3.94" (100.00mm) |
| Minimum Bundle Diameter: | 0.19" (4.8mm) |
| Tensile Strength: | 50lbs (22.67kg) |
| Edge Clip Range: | 1/16" to 1/8" (1mm to 3mm) |
| Material: | Nylon 6/6 HS (Heat Stabilized) |
| Flammability Rating: | UL 94 V-2 |
| Gamma Resistance: | 1x10 Rads |
| Operating Temperature: | -40°F to 239°F (-40°C to +85°C) |
| UV Resistant: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

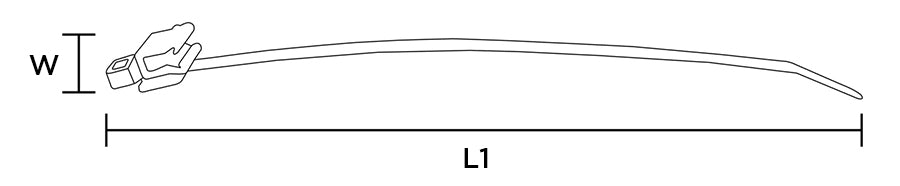

DRAWING:
DOCUMENT FILE:
