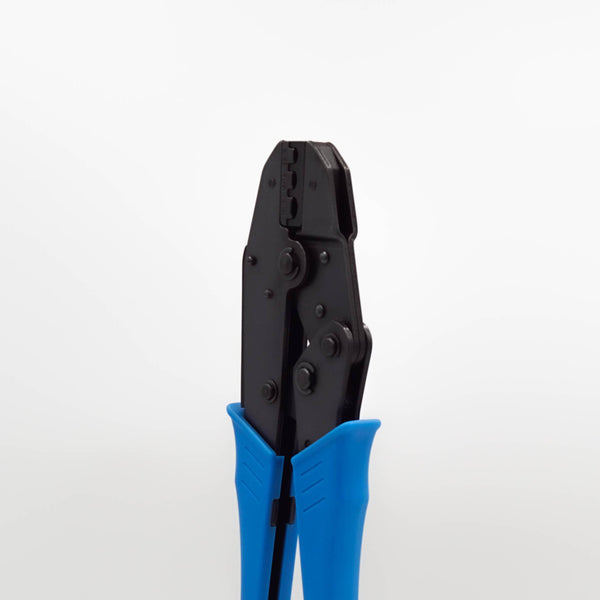

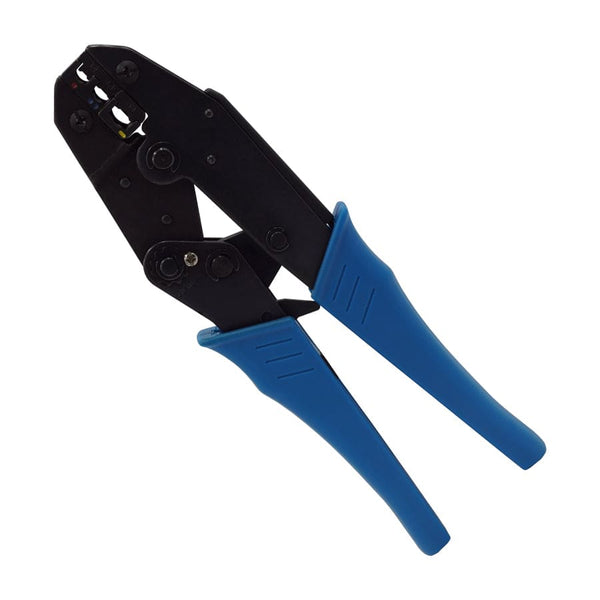

FDT10011 - Insulated Terminal Crimping Tool - 22 to 10AWG - Standard Handles
FDT10011 - Insulated Terminal Crimping Tool - 22 to 10AWG - Standard Handles - Ferrules Direct
FDT10011 - Insulated Terminal Crimping Tool - 22 to 10AWG - Standard Handles - Ferrules Direct
360 view FDT10011 - Insulated Terminal Crimping Tool - 22 to 10AWG - Standard Handles - Ferrules Direct FDT10011 - Insulated Terminal Crimping Tool - 22 to 10AWG - Standard Handles - Ferrules Direct

FDT10011 - Insulated Terminal Crimping Tool - 22 to 10AWG - Standard Handles

$39.00 - $39.00
$39.00
$39.00 - $39.00
$39.00
SKU FDT10011
Availability:
in stock, ready to be shipped
Quantity: 1 Piece
Need to fully certify that your tool is calibrated for optimal crimping? We offer an additional calibration here
Crimping tool for insulated terminals, (ring, spade, bullet, quick disconnects, etc..)
  • Reliable and precise crimping
  • Ratchet mechanism and built-in safety release
  • Long Lasting
  • Hardened Steel Frame
  • Economically Designed Handles

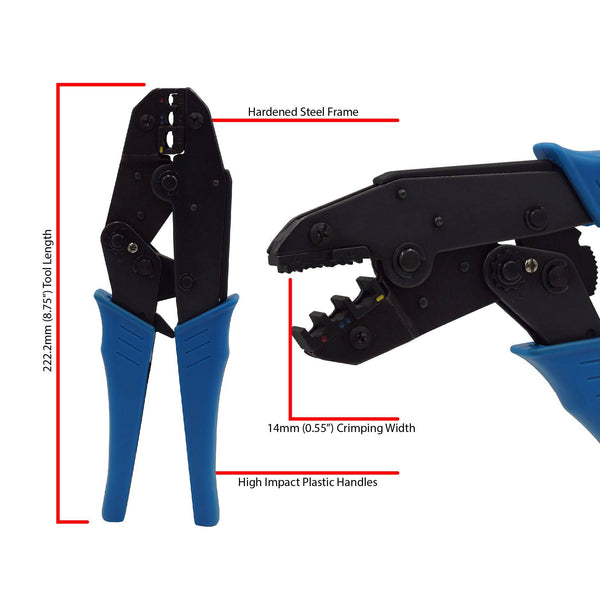

    • Dimensions & Features:

    Wire Range: 22-10 AWG (0.5-0-6.00mm2)
    Slot 1: 12-10 AWG (4.00-6.00mm2) - Yellow
    Slot 2: 16-14 AWG (1.50-2.50mm2) - Blue
    Slot 3: 22-18 AWG (0.50-1.00mm2) - Red
    Crimping Mechanism: Ratchet
