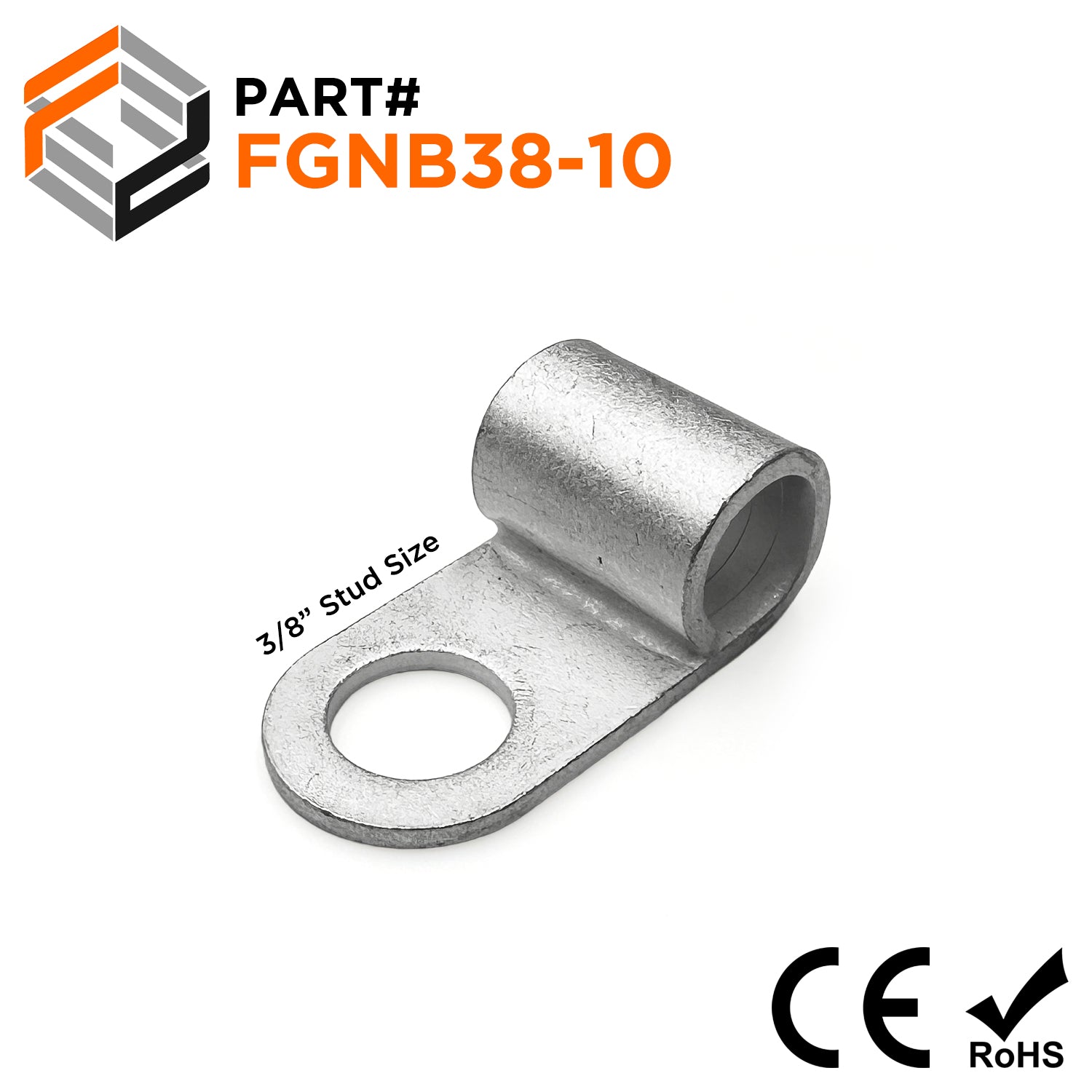

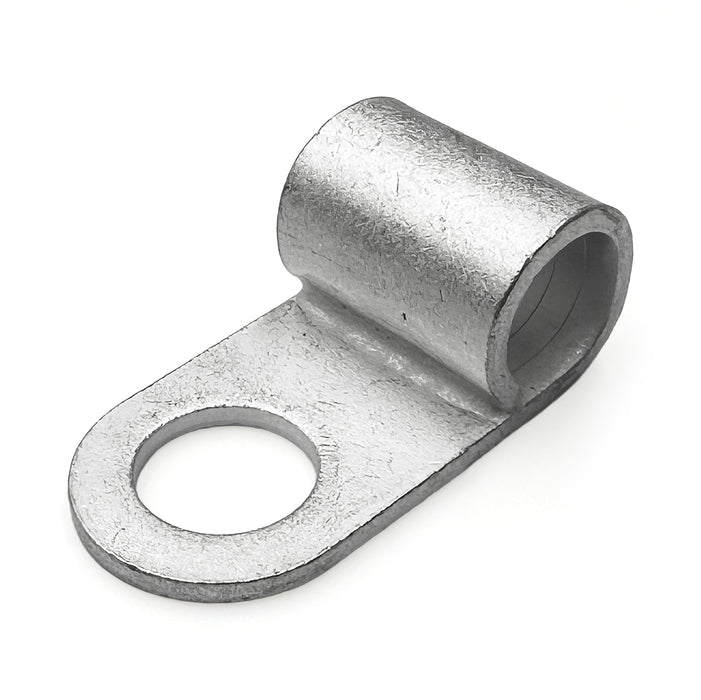

FGNB38-10 - Non Insulated Flag Terminal - Ring Tongue - 2 AWG - 3/8" Stud - 10 Pieces

Name: FGNB38-10 - Non Insulated Flag Terminal - Ring Tongue - 2 AWG - 3/8" Stud - 10 Pieces
Brand: Ferrules Direct
SKU: FGNB38-10
Price: 17.61 USD
Availability: InStock

$17.61 - $17.61

$17.61

$17.61 - $17.61

$17.61

SKU FGNB38-10

Pack Quantity: 10 Pieces

Availability:

in stock, ready to be shipped

Quantity

true

RING TONGUE (FLAG) TERMINALS

Ring tongue terminals (also known as 90 degree flag ring terminals) are an ideal solution for overcoming space constraints in tight controls panels or other cramped enclosures. The 90 degree angle allows the connected wire to run parallel or flush against the wall or other mounting surface.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

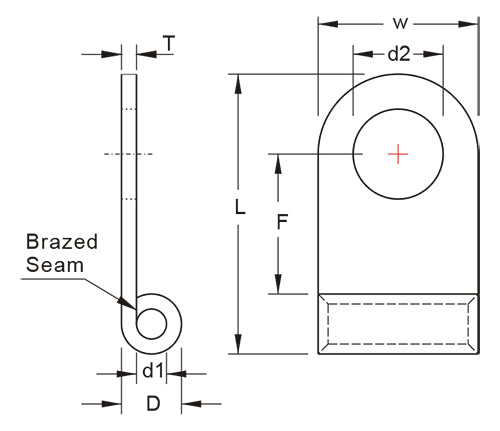

PRODUCT INFORMATION
Wire Size	2 AWG
Stud Size	3/8" Stud
Overall Length (L)	36.1mm (1.421")
Barrel-to-Stud (F)	13.6mm (0.535")
Tab Width (W)	18.3mm (0.720")
Outer Diameter (D)	13.3mm (0.524")
Inner Diameter (D1)	9.4mm (0.370")
Stud Hole (D2)	10.5mm (0.413")
Tab Thickness (T)	1.8mm (0.071")
Material	Tin Plated Copper
Seam Style	Brazed
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDCT38 \| FDCT80

PRODUCT INFORMATION
Highlight differences	FGNB38-10 - Non Insulated Flag Terminal - Ring Tongue - 2 AWG - 3/8" Stud - 10 Pieces$17.61
Wire Size	2 AWG
Stud Size	3/8" Stud
Overall Length (L)	36.1mm (1.421")
Barrel-to-Stud (F)	13.6mm (0.535")
Tab Width (W)	18.3mm (0.720")
Outer Diameter (D)	13.3mm (0.524")
Inner Diameter (D1)	9.4mm (0.370")
Stud Hole (D2)	10.5mm (0.413")
Tab Thickness (T)	1.8mm (0.071")
Material	Tin Plated Copper
Seam Style	Brazed
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDCT38 \| FDCT80
