LY8-060 - UL Approved Wire Ferrule Crimping Tool - 24-10 AWG - Ferrules Direct

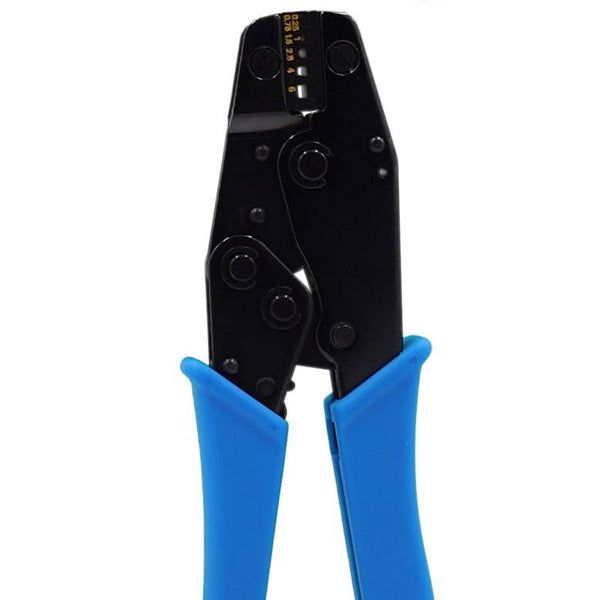

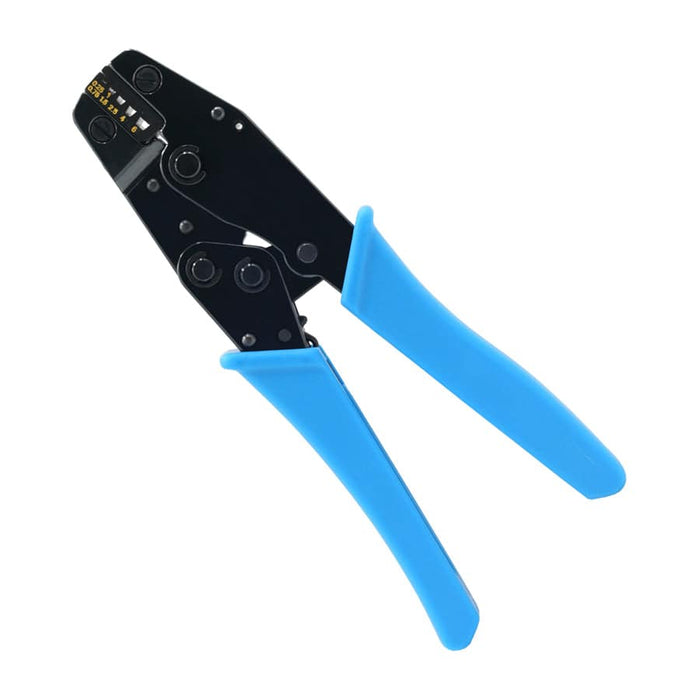

KST LY8-060 - 24 to 10 AWG Wire Ferrules Crimping Tool, UL Approved, Side Load, Trapezoidal Profile, 1 Piece

$66.02 - $66.02
$66.02
$66.02 - $66.02
$66.02
SKU LY8-060
Availability:
in stock, ready to be shipped
Quantity: 1 Piece
Need to fully certify that your tool is calibrated for optimal crimping? We offer an additional calibration here
true

HIGH PERFORMANCE WIRE FERRULES CRIMPING TOOL

This KST LY8-060 is UL approved and designed for 24 to 10 AWG wire ferrules. It has the traditional slotted die set design with a ratchet mechanism.

FEATURES & SPECIFICATIONS:

  • Crimping Range: 24 to 10 AWG (0.25-6.00mm²)
    • Standard Ferrules: 24 to 10 AWG (0.25-6.00mm²)
    • Twin Wire Ferrules: 22 to 12 AWG (0.50-4.00mm²)
  • Crimping Profile: Trapezoidal

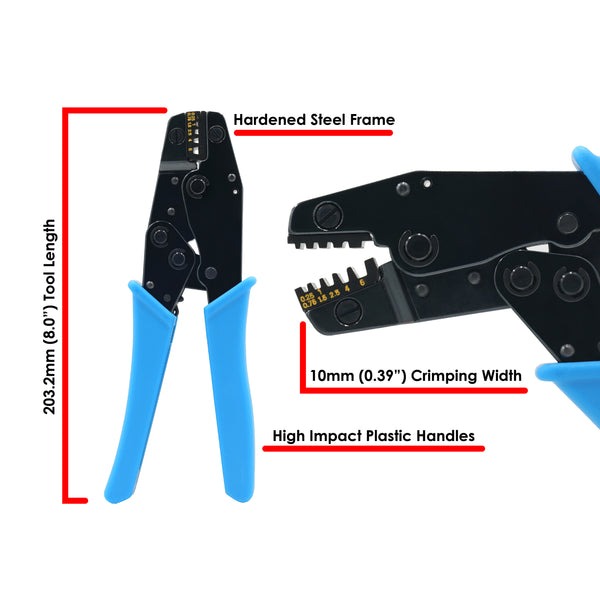

  • Maximum Ferrule Crimping Length: 3/8" (10mm)
  • Tool Length: 8" Long
  • Crimping Mechanism: Ratchet Mechanism with Traditional Slotted Die Set
  • UL Approved
  • Side Loading
  • Hardened steel frame
  • Ergonomically designed handles with comfort grips.
  • Estimated life span of <50,000 crimp cycles
  • Calibrated at factory for immediate out-of-the-box use
  • Tension adjustment knob for longterm adjustment.
  • 1-Year Warranty*
  • RoHS Compliant
