M1205 - M12x1.5 Nylon Metric Cable Gland - Gray
Original price
$0.64
-
Original price
$0.64
Original price
$0.64
$0.64
-
$0.64
Current price
$0.64
SKU M1205
Availability:
in stock, ready to be shipped

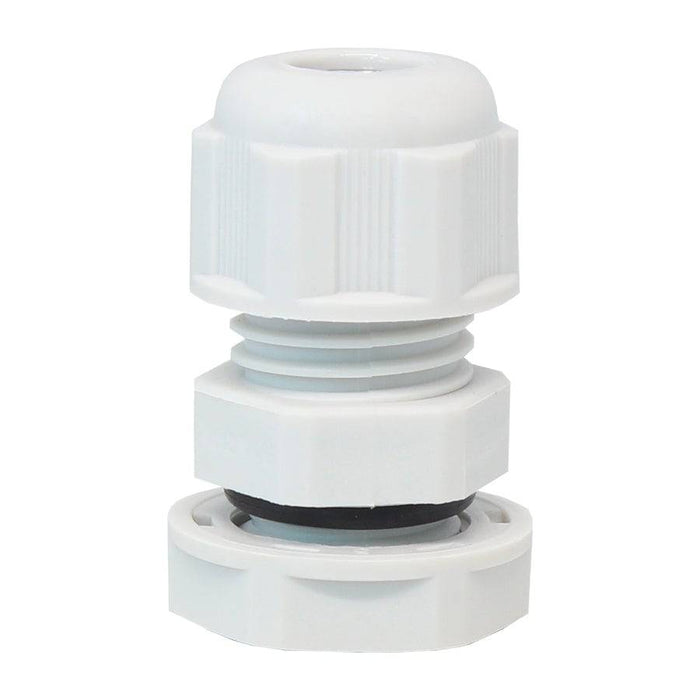

M12x1.5 Metric Thread Gray Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M12x1.5 |
| Cable Range: | 2-5mm |
| Color: | Gray |
| C1: | 11.8mm (0.46") |
| C2: | 7.5mm (0.30") |
| D2: | 7.5mm (0.30") |
| B1: | 5.2mm (0.20") |
| L1: | 7.7mm (0.30") |
| L2: | 18.8mm (0.74") |
| L3: | 11.8mm (0.46") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
