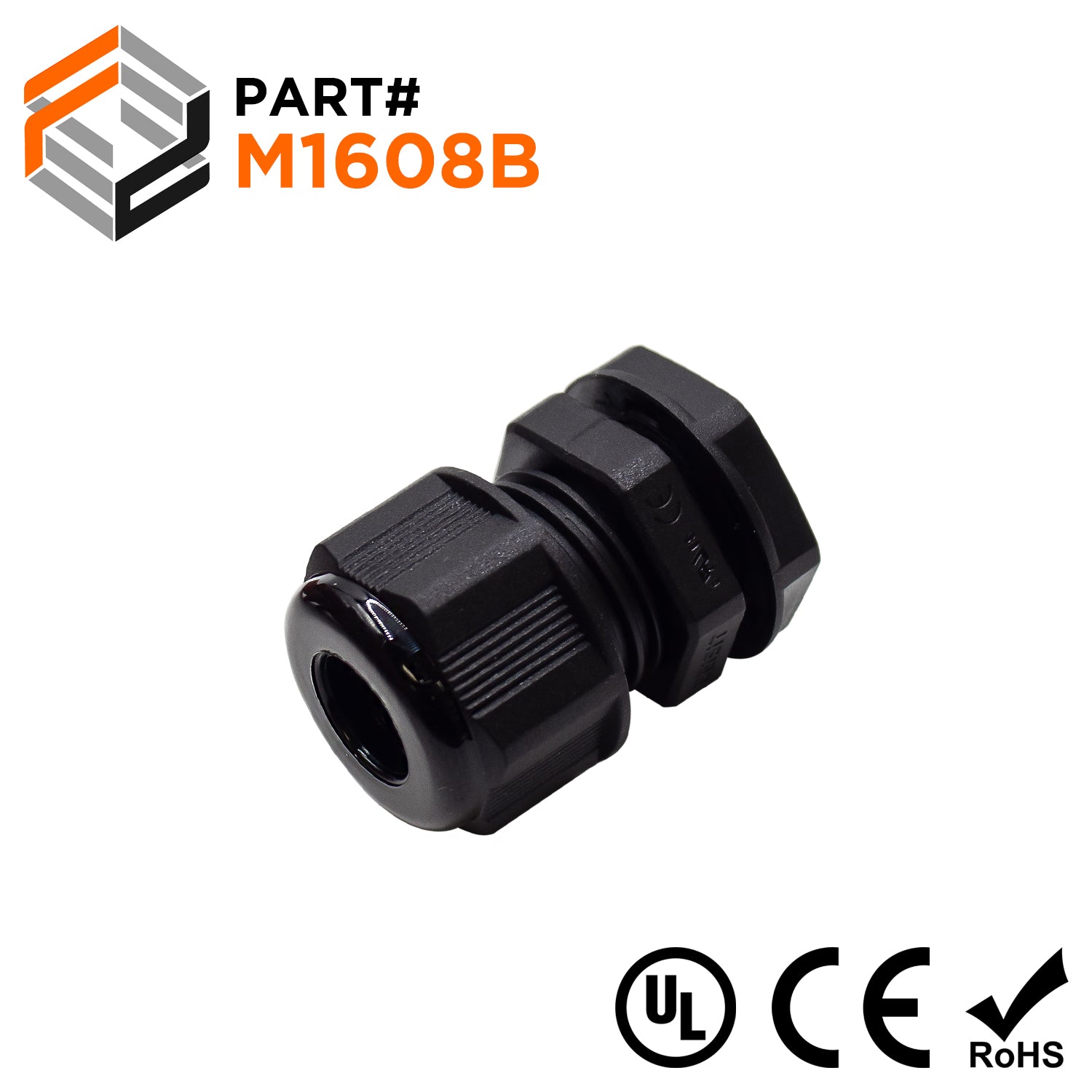

M1608B - M16x1.5 Nylon Metric Cable Gland - 4-8mm - Black
Original price
$0.68
-
Original price
$0.68
Original price
$0.68
$0.68
-
$0.68
Current price
$0.68
SKU M1608B
Availability:
in stock, ready to be shipped

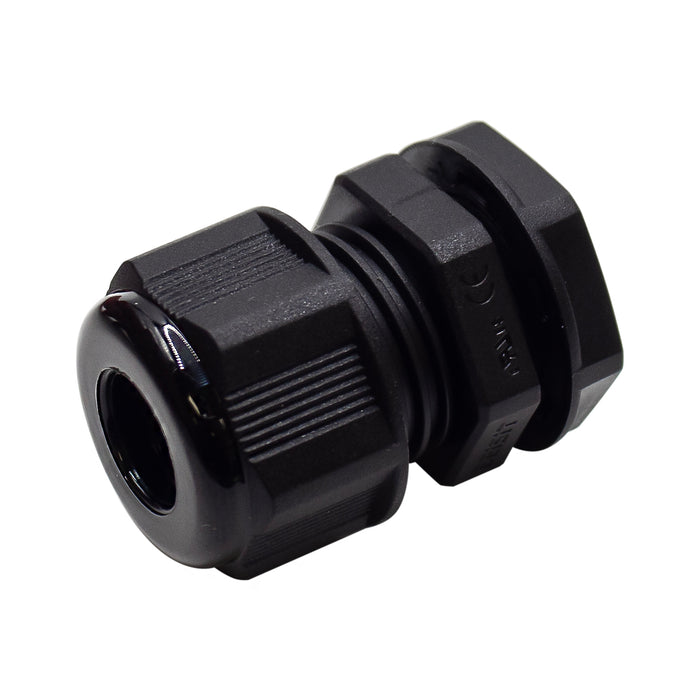

M16x1.5 Metric Thread Black Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M16x1.5 |
| Cable Range: | 4-8mm |
| Color: | Black |
| C1: | 15.8mm (0.62") |
| C2: | 8.8mm (0.35") |
| D2: | 8.3mm (0.33") |
| B1: | 8.1mm (0.32") |
| L1: | 7.8mm (0.31") |
| L2: | 19.5mm (0.77") |
| L3: | 13.1mm (0.52") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
