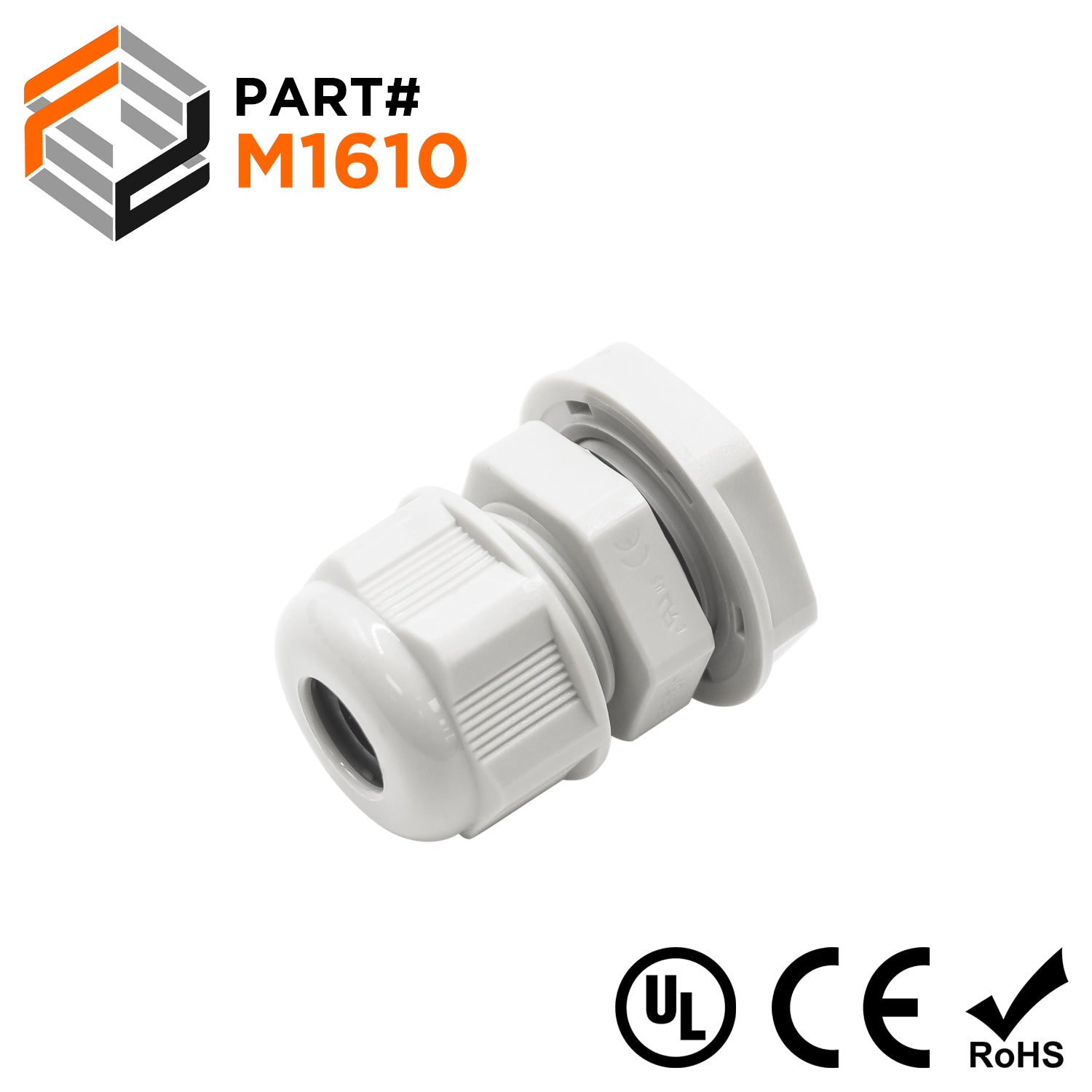

M1610 - M16x1.5 Nylon Metric Cable Gland - Gray

Original price $0.76 - Original price $0.76
Original price
$0.76
$0.76 - $0.76
Current price $0.76
SKU M1610
Availability:
in stock, ready to be shipped
Pack Quantity: 1 Piece
M16x1.5 Metric Thread Gray Cable Gland (Includes both o-ring and locknut)

Dimensions & Features:

Thread Size: M16x1.5
Cable Range: 5-10mm
Color: Gray
C1: 16mm (0.63")
C2: 10.9mm (0.43")
D2: 10.4mm (0.41")
B1: 10.3mm (0.40")
L1: 8.4mm (0.33")
L2: 21.9mm (0.86")
L3: 15mm (0.59")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
