M2012B - M20x1.5 Nylon Metric Cable Gland - Black
Original price
$0.84
-
Original price
$0.84
Original price
$0.84
$0.84
-
$0.84
Current price
$0.84
SKU M2012B
Availability:
in stock, ready to be shipped

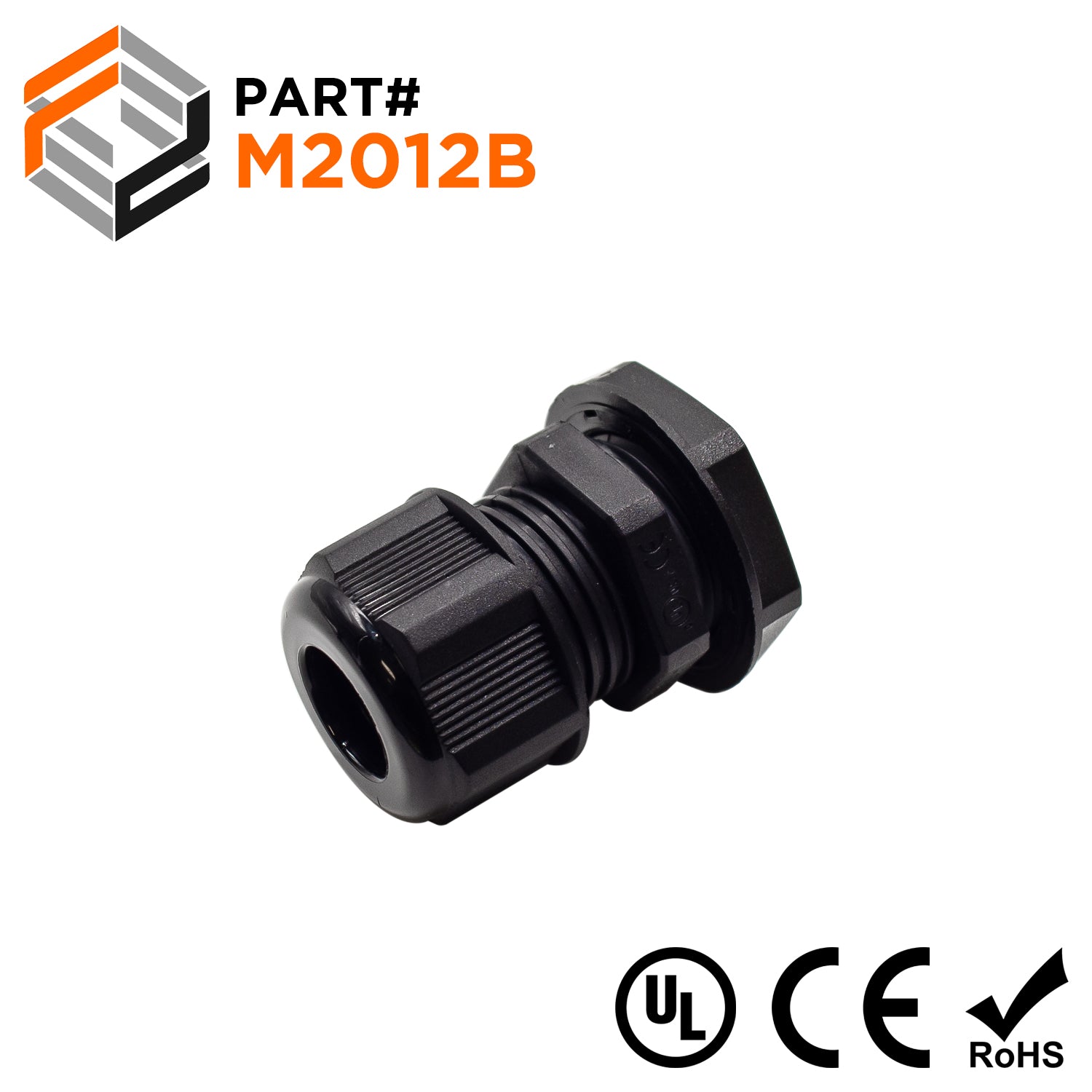

M20x1.5 Metric Thread Black Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M20x1.5 |
| Cable Range: | 6-12mm |
| Color: | Black |
| C1: | 20.1mm (0.79") |
| C2: | 13.5mm (0.53") |
| D2: | 12.3mm (0.48") |
| B1: | 12.3mm (0.48") |
| L1: | 8.9mm (0.35") |
| L2: | 23.3mm (0.92") |
| L3: | 16mm (0.63") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
