SKU M2516B
Availability:
in stock, ready to be shipped

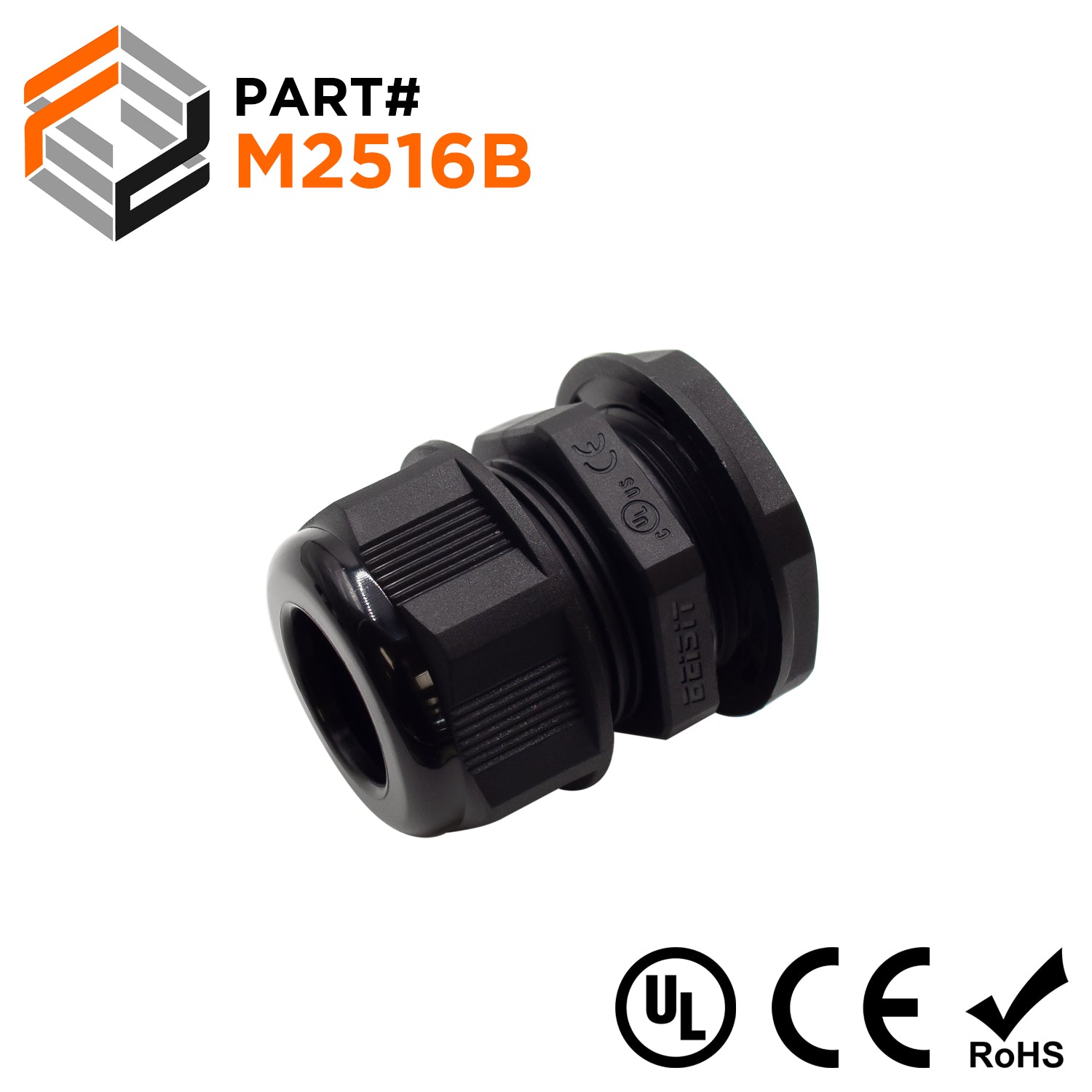

M25x1.5 Metric Thread Black Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M25x1.5 |
| Cable Range: | 9-16mm |
| Color: | Black |
| C1: | 25mm (0.98") |
| C2: | 18.8mm (0.74") |
| D2: | 18.4mm (0.72") |
| B1: | 16.2mm (0.64") |
| L1: | 11mm (0.43") |
| L2: | 25.8mm (1.02") |
| L3: | 19.3mm (0.76") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
