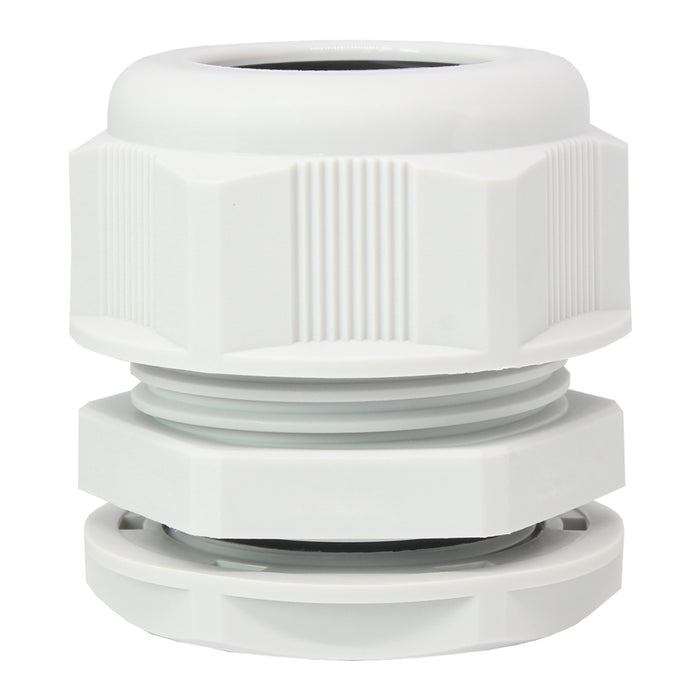

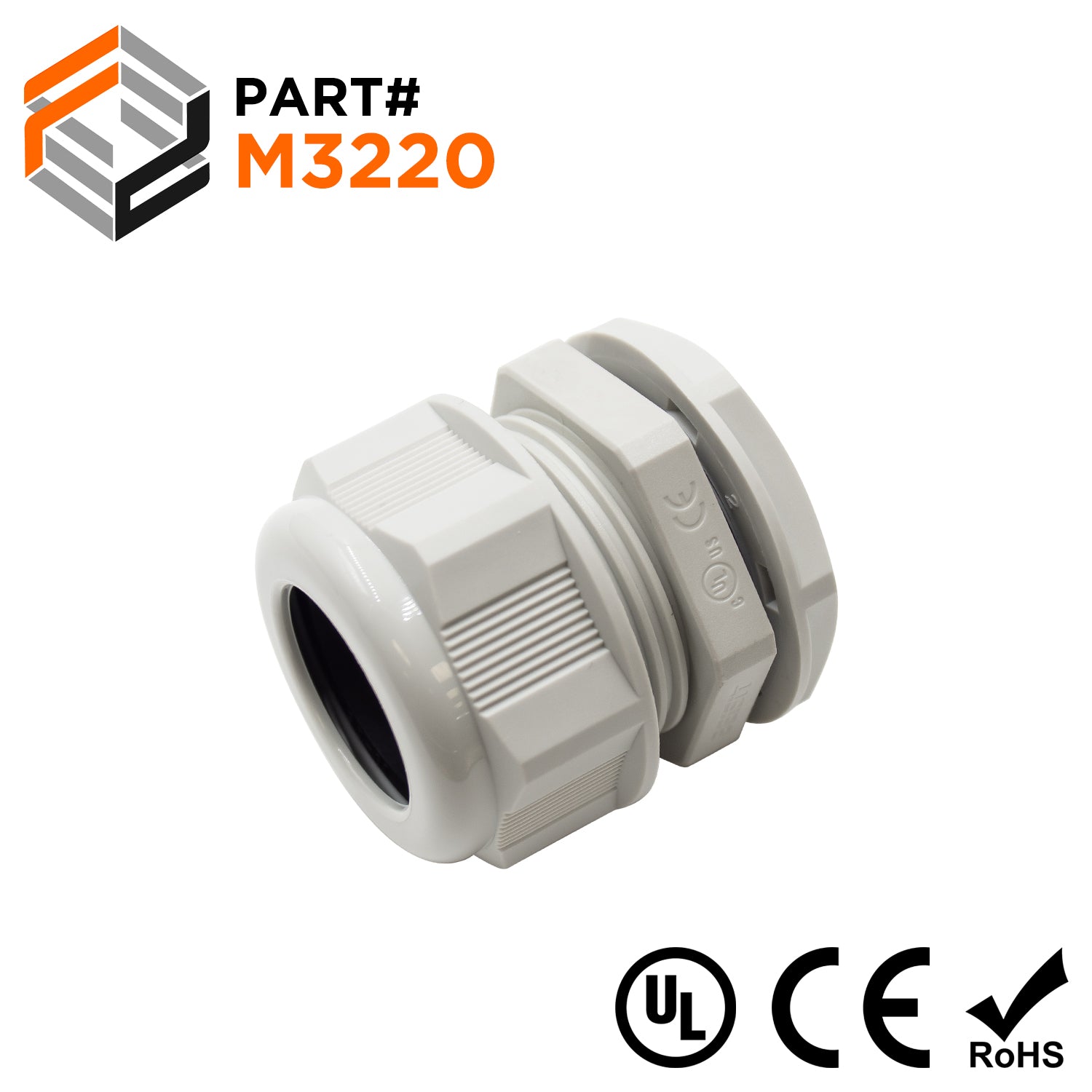

M3220 - M32x1.5 Nylon Metric Cable Gland - 13-20mm - Gray
Original price
$2.66
-
Original price
$2.66
Original price
$2.66
$2.66
-
$2.66
Current price
$2.66
SKU M3220
Availability:
in stock, ready to be shipped
M32x1.5 Metric Thread Gray Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M32x1.5 |
| Cable Range: | 13-20mm |
| Color: | Gray |
| C1: | 32mm (1.26") |
| C2: | 25.7mm (1.01") |
| D2: | 25.5mm (1.00") |
| B1: | 19.7mm (0.78") |
| L1: | 11.4mm (0.45") |
| L2: | 33.3mm (1.31") |
| L3: | 23.3mm (0.92") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
