M4032 - M40x1.5 Nylon Metric Cable Gland - Gray

Original price $4.62 - Original price $4.62
Original price
$4.62
$4.62 - $4.62
Current price $4.62
SKU M4032
Availability:
in stock, ready to be shipped
Pack Quantity: 1 Piece

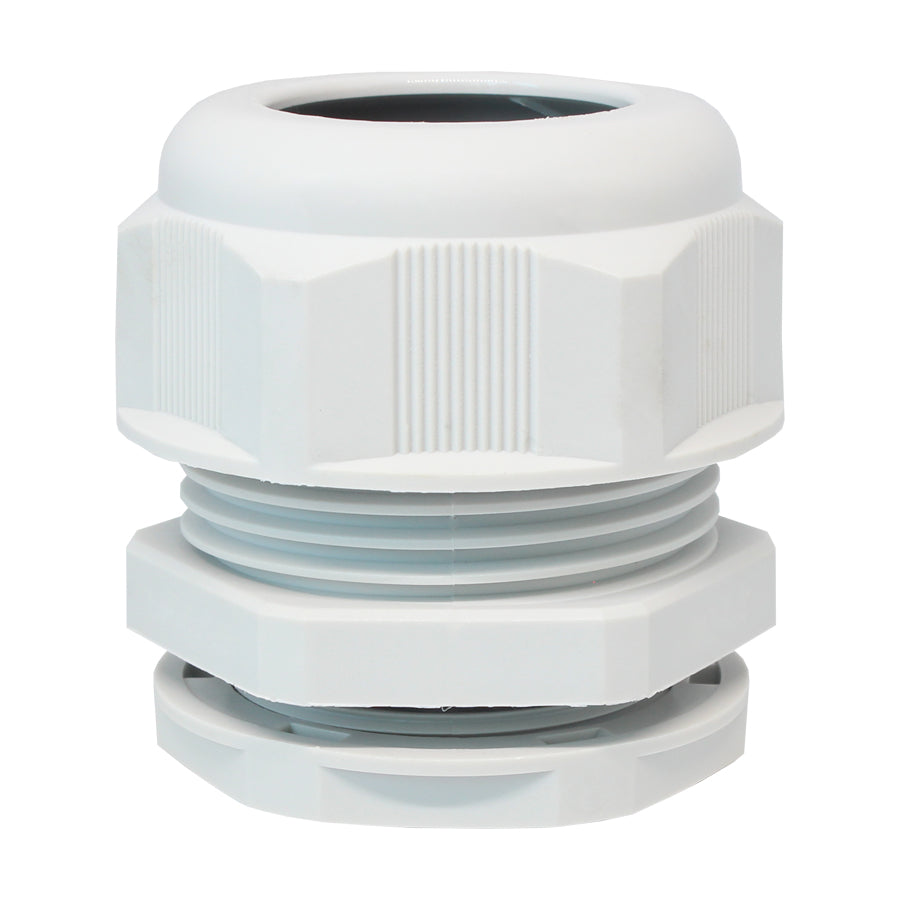

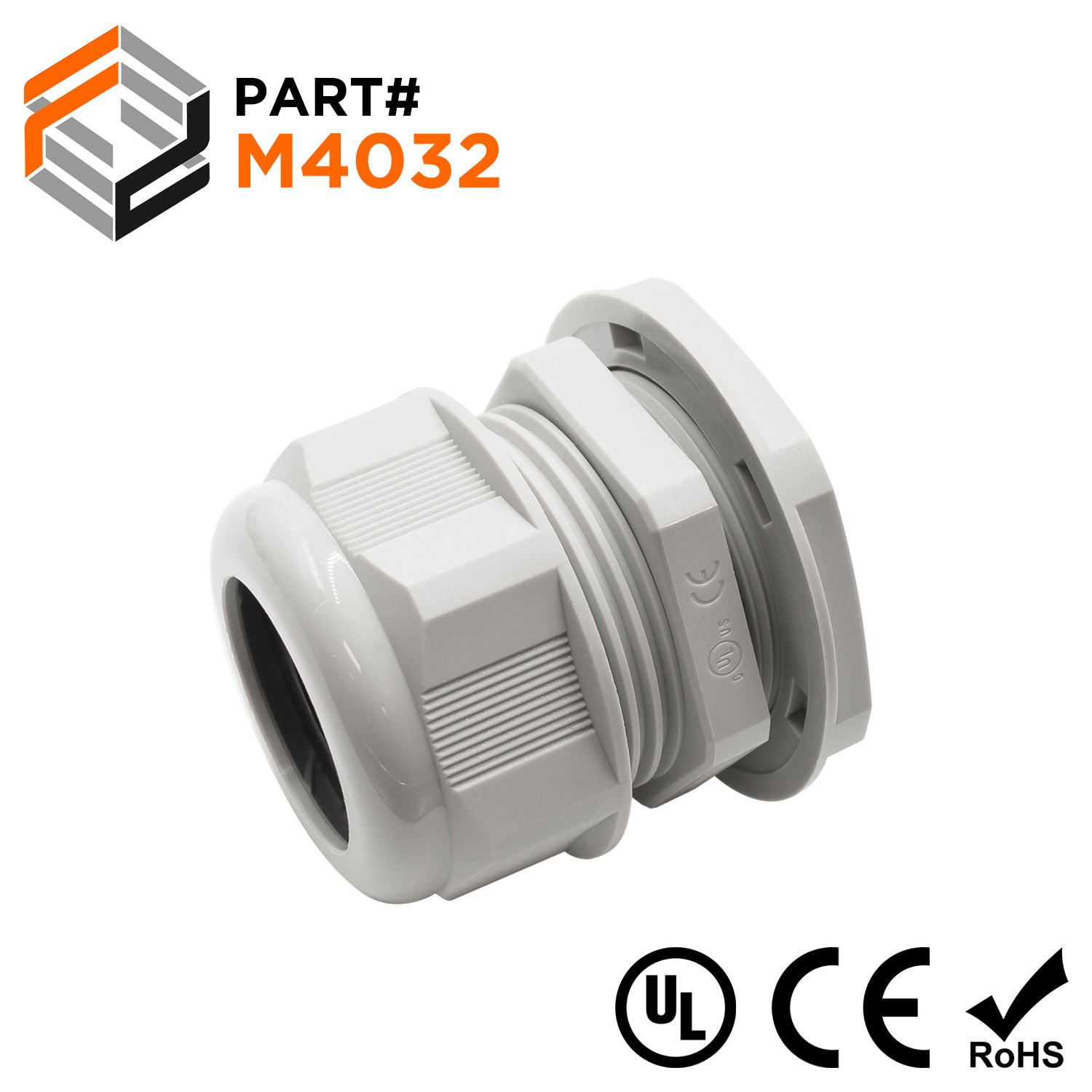

M40x1.5 Metric Thread Gray Cable Gland (Includes both o-ring and locknut)

Dimensions & Features:

Thread Size: M40x1.5
Cable Range: 22-32mm
Color: Gray
C1: 39.9mm (1.57")
C2: 33.9mm (1.33")
D2: 33.9mm (1.33")
B1: 32.2mm (1.27")
L1: 13.1mm (0.52")
L2: 41.4mm (1.63")
L3: 28.7mm (1.13")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
