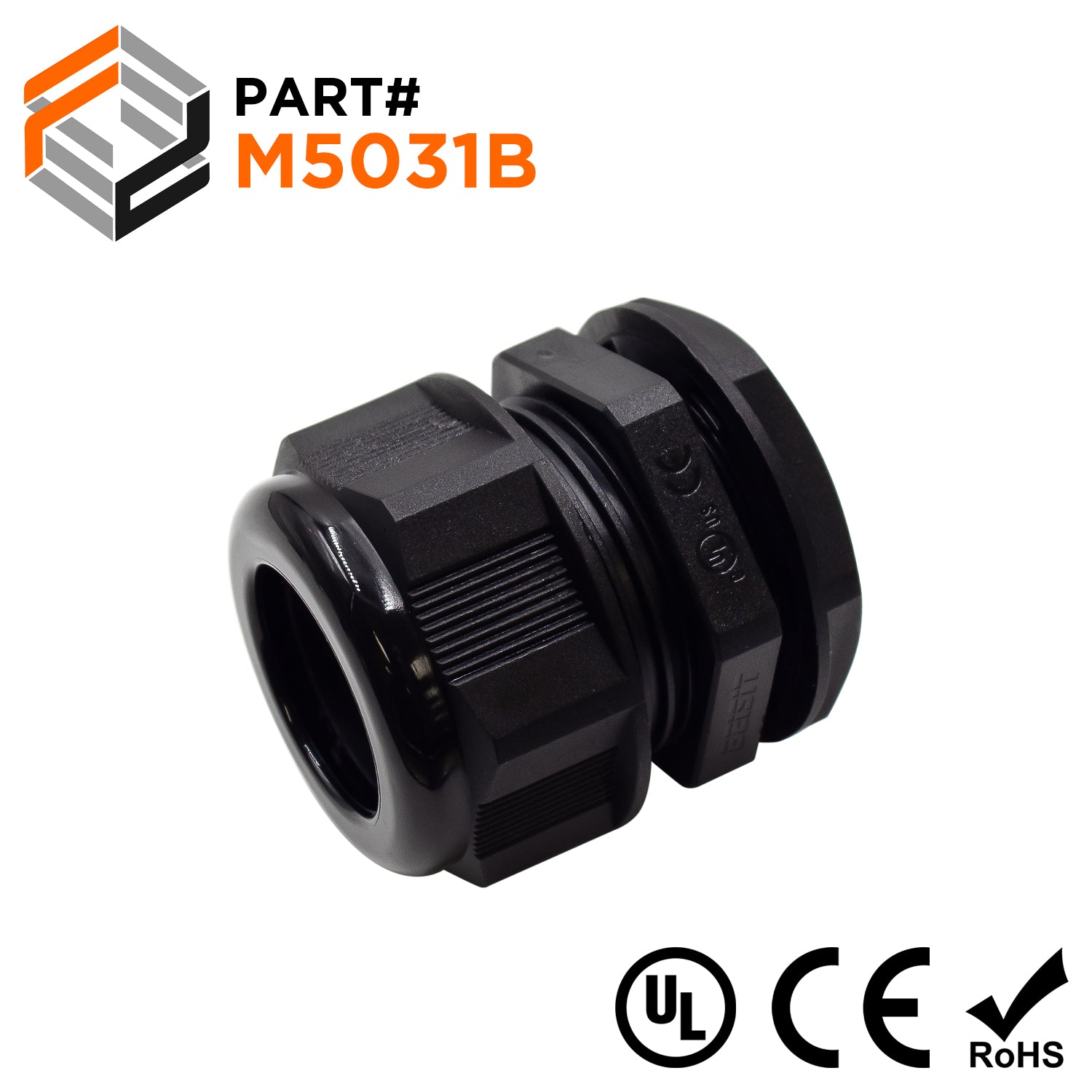

M5031B - M50x1.5 Nylon Metric Cable Gland - 25-31mm - Black

Original price $6.68 - Original price $6.68
Original price
$6.68
$6.68 - $6.68
Current price $6.68
SKU M5031B
Availability:
in stock, ready to be shipped
Pack Quantity: 1 Piece
M50x1.5 Metric Thread Black Cable Gland (Includes both o-ring and locknut)

Dimensions & Features:

Thread Size: M50x1.5
Cable Range: 25-31mm
Color: Black
C1: 49.9mm (1.96")
C2: 40.9mm (1.61")
D2: 33.9mm (1.33")
B1: 30.4mm (1.20")
L1: 12.8mm (0.50")
L2: 42.4mm (1.67")
L3: 30.1mm (1.19")
Material: UL Approved 94UV-2
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
