M5038B - M50x1.5 Nylon Metric Cable Gland - 32-38mm - Black
Original price
$6.75
-
Original price
$6.75
Original price
$6.75
$6.75
-
$6.75
Current price
$6.75
SKU M5038B
Availability:
in stock, ready to be shipped

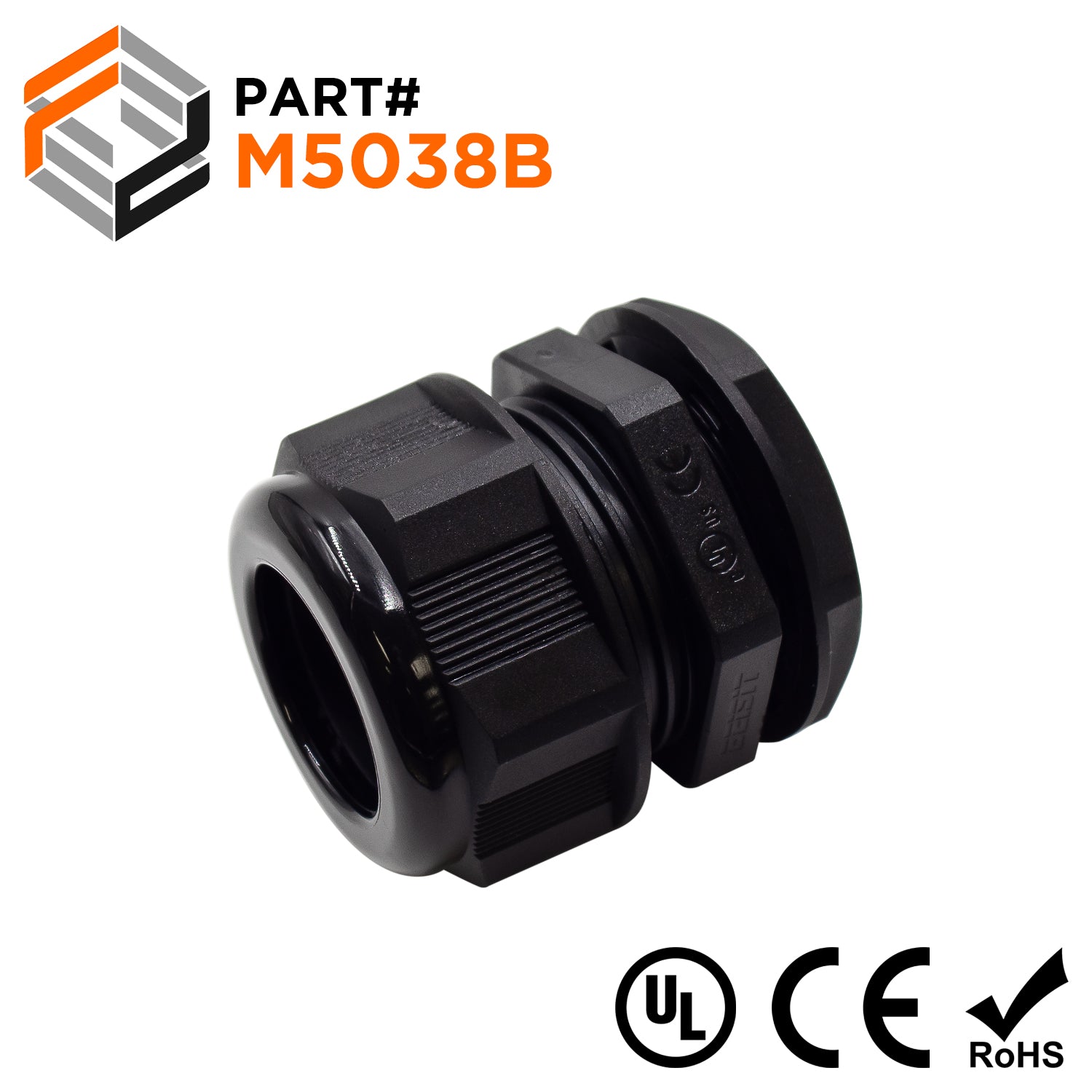

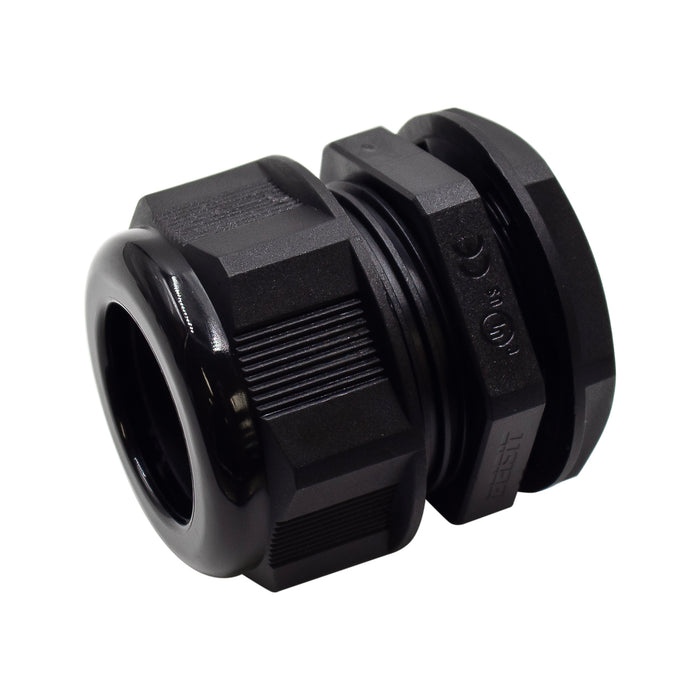

M50x1.5 Metric Thread Black Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M50x1.5 |
| Cable Range: | 32-38mm |
| Color: | Black |
| C1: | 49.9mm (1.96") |
| C2: | 41.5mm (1.63") |
| D2: | 33.9mm (1.33") |
| B1: | 38mm (1.50") |
| L1: | 12.8mm (0.50") |
| L2: | 42.4mm (1.67") |
| L3: | 30.1mm (1.19") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
