M6344 - M63x1.5 Nylon Metric Cable Gland - Gray
Original price
$7.80
-
Original price
$7.80
Original price
$7.80
$7.80
-
$7.80
Current price
$7.80
SKU M6344
Availability:
in stock, ready to be shipped

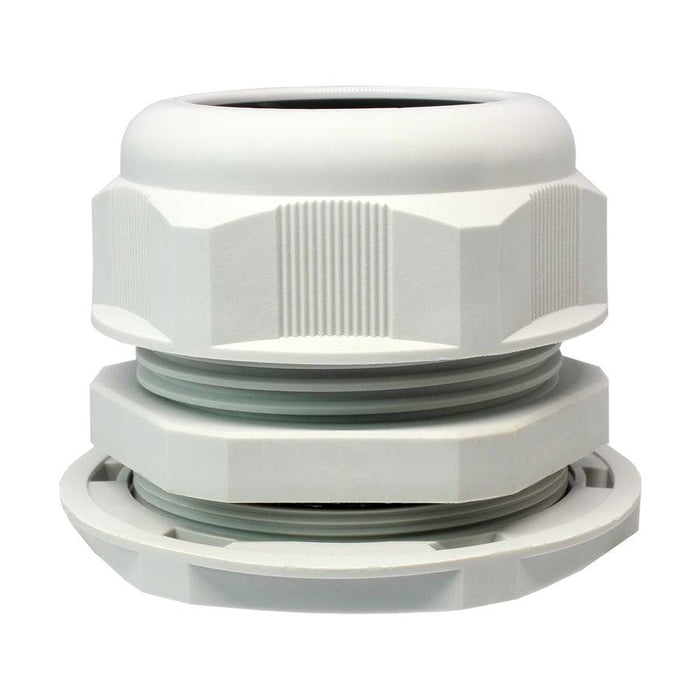

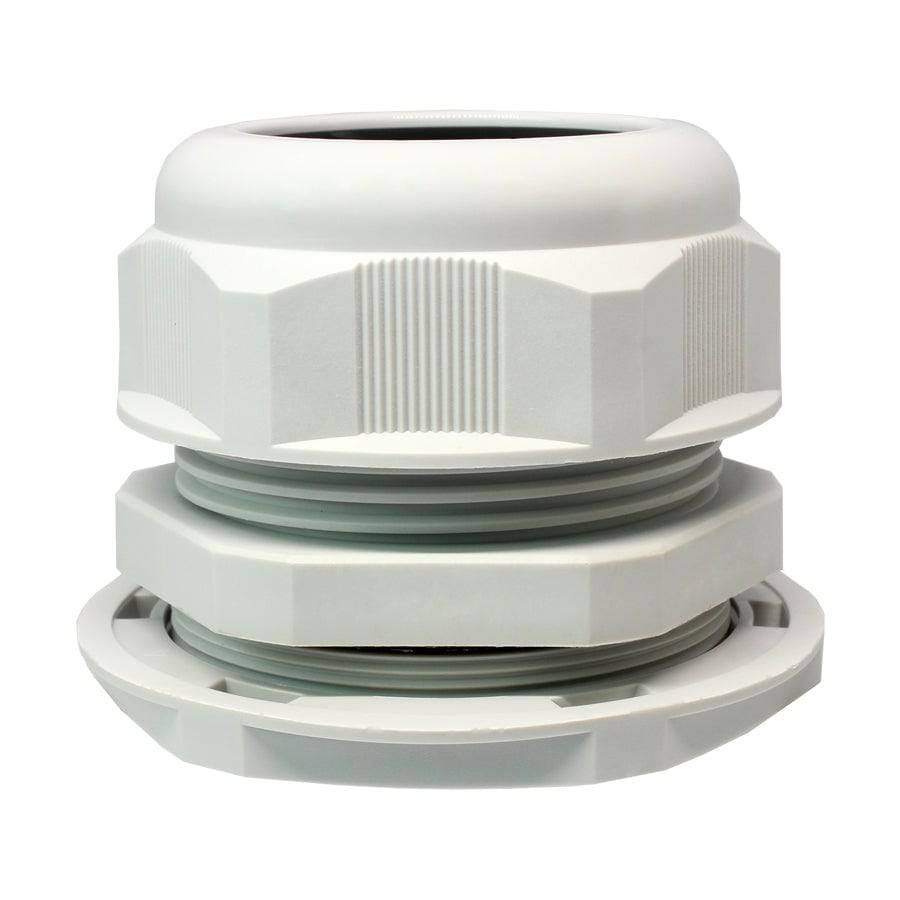

M63x1.5 Metric Thread Gray Cable Gland (Includes both o-ring and locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | M63x1.5 |
| Cable Range: | 37-44mm |
| Color: | Gray |
| C1: | 62.6mm (2.46") |
| C2: | 53.5mm (2.11") |
| D2: | 45.2mm (1.78") |
| B1: | 45.2mm (1.78") |
| L1: | 13.5mm (0.53") |
| L2: | 42.5mm (1.67") |
| L3: | 30.3mm (1.19") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
