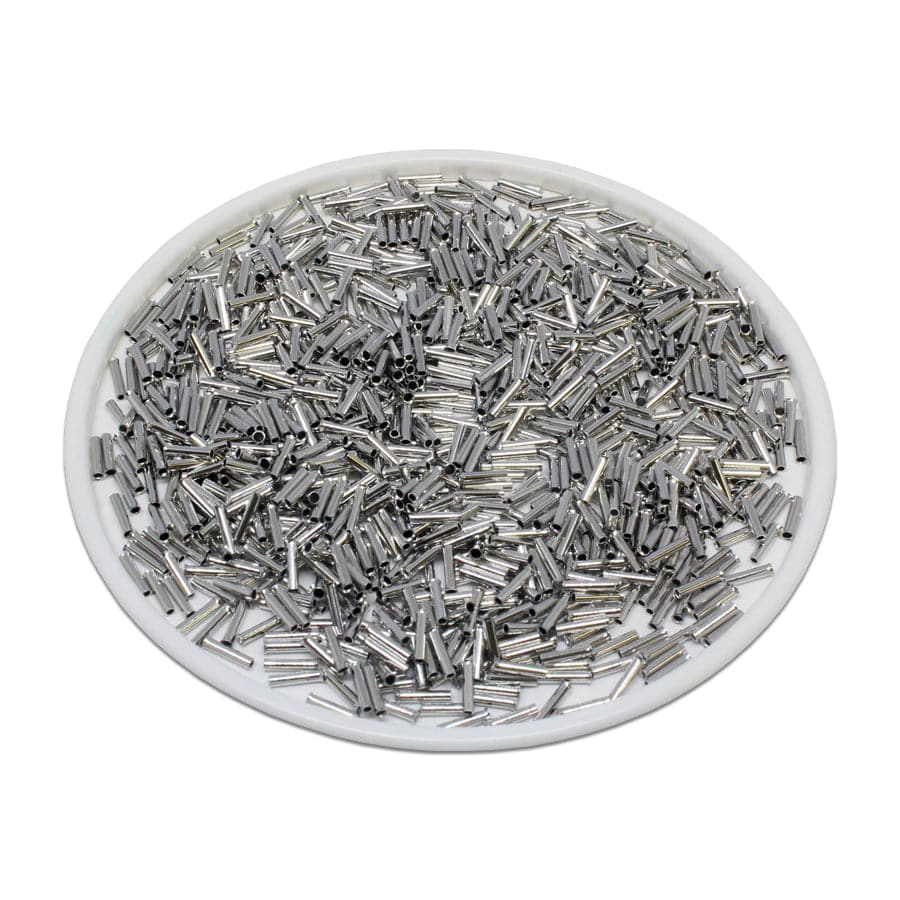

24 AWG (5mm Pin) Non Insulated Ferrules

$12.81
SKU N02505
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 24 AWG (0.25mm2)
Material: Tin-Plated Copper
L1: 5.0mm (0.19")
D: 1.1mm (0.04")
D1: 0.8mm (0.03")
D2 1.5mm (0.05")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 7AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG01949
Burndy: YF2807UI
Crimp Supply: 13A12001
Eclipse: V3AE9399
Greenlee: XUSG01949
McMaster-Carr: YF2807UI
Panduit: 13A12001
Phoenix Contact: V3AE9399
WAGO: XUSG01949
Weidmuller: YF2807UI
ZF: V3AE9399
