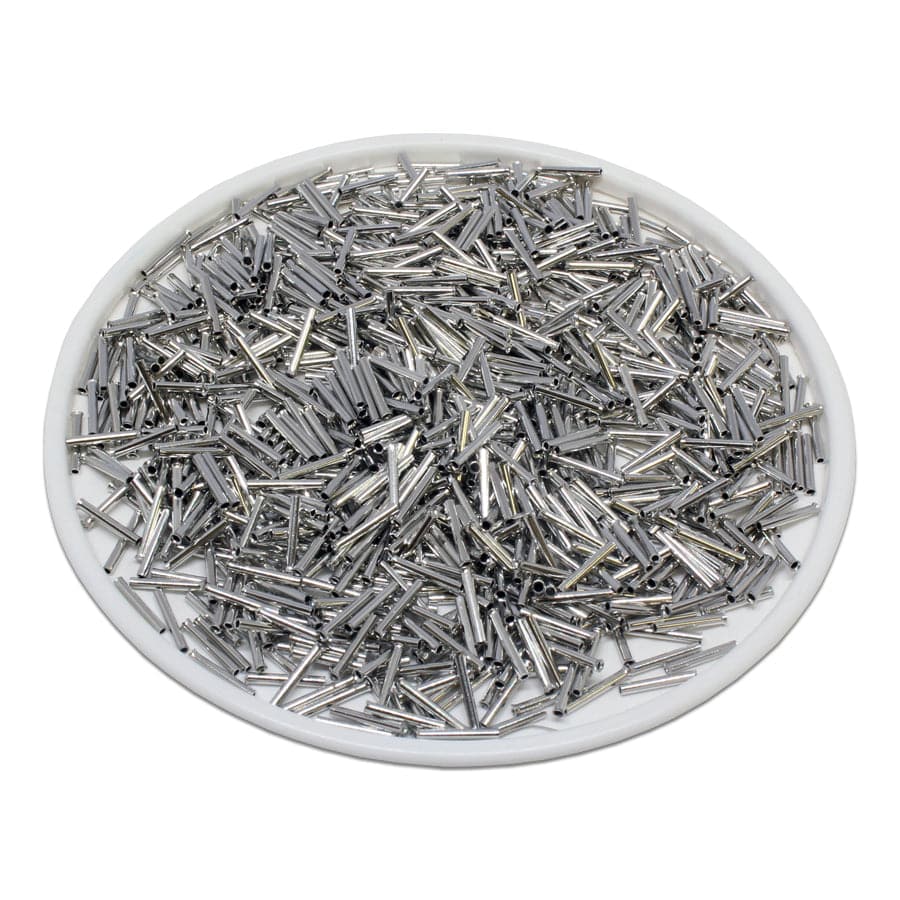

24 AWG (7mm Pin) Non Insulated Ferrules

$13.62
SKU N02507
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 24 AWG (0.25mm2)
Material: Tin-Plated Copper
L1: 7.0mm (0.27")
D: 1.1mm (0.04")
D1: 0.8mm (0.03")
D2 1.5mm (0.05")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 7AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG01951
American Electrical: 12710025
Burndy: YF2607UI
Greenlee: 69/7VZ
McMaster-Carr: 9681K48 9681K12
Panduit: F73-7-M
Phoenix Conduit: 3202478
