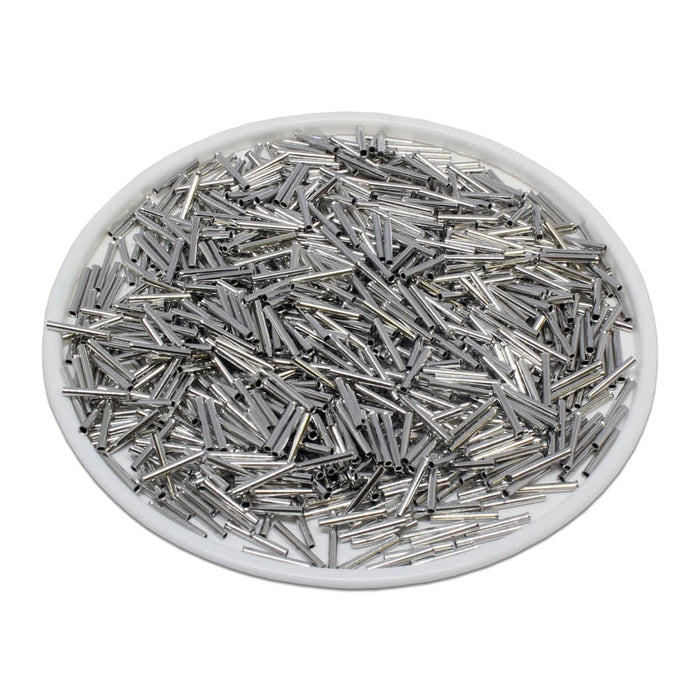

N02508 - 24 AWG (8mm Pin) Non Insulated Ferrules
Original price
$14.38
-
Original price
$14.38
Original price
$14.38
$14.38
-
$14.38
Current price
$14.38
SKU N02508
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 24 AWG (0.25mm2) |
| Material: | Tin-Plated Copper |
| L1: | 8.0mm (0.31") |
| D: | 1.1mm (0.04") |
| D1: | 0.8mm (0.03") |
| D2 | 1.5mm (0.05") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 7AMP |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:Documents
Click to view product spec sheet:
