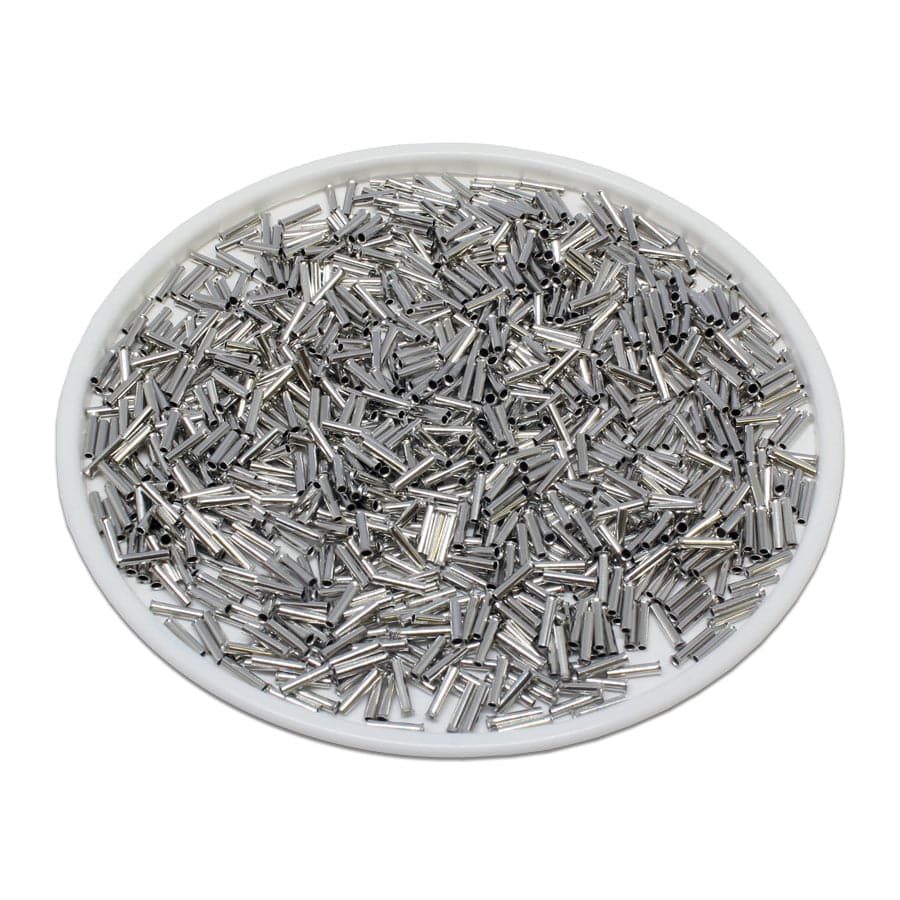

22 AWG (5mm Pin) Non Insulated Ferrules

$12.81
SKU N03405
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 22 AWG
Material: Tin-Plated Copper
L1: 5mm (0.19")
D: 1.2mm (0.04")
D1: 0.8mm (0.03")
D2: 1.5mm (0.05")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 9A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: XUSG01952
American Electrical: 12510034
Burndy: YF2405UI
Crimp Supply: 13A12003
Greenlee: 70/5VZ
McMaster-Carr: 9681K49 9681K13
Panduit: F74-5-M
WAGO: 216-152
ZF: V3AE9398
