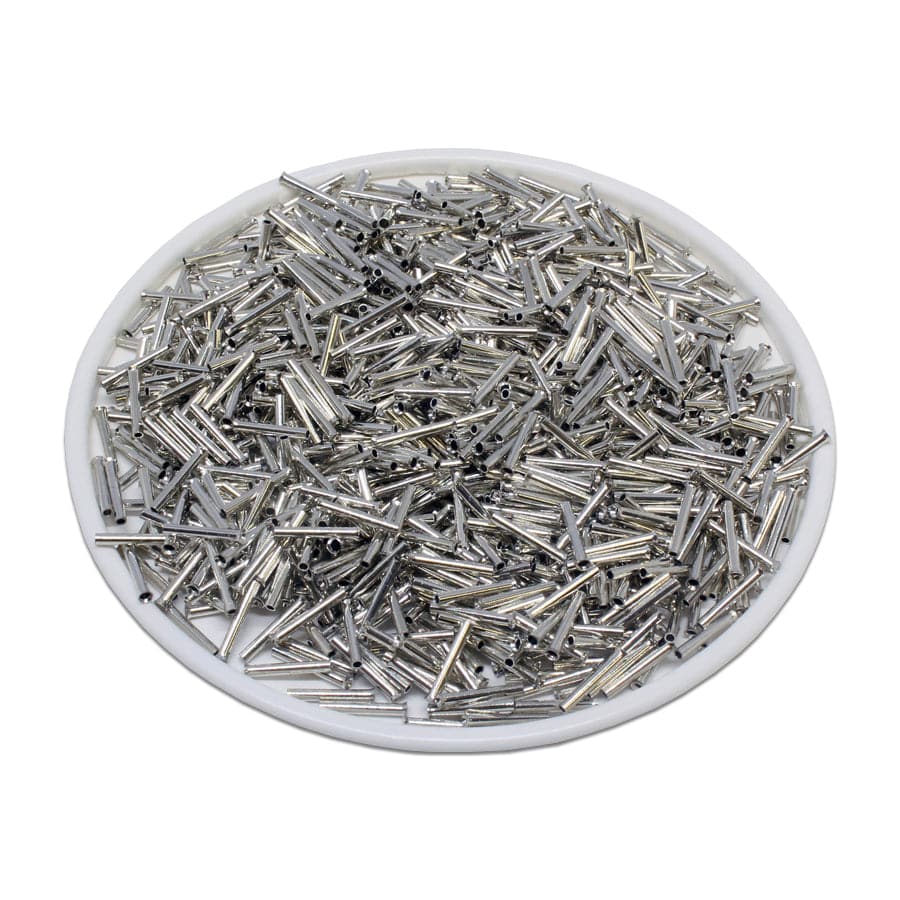

N03408 - 22 AWG (8mm Pin) Non Insulated Ferrules
Original price
$13.68
-
Original price
$13.68
Original price
$13.68
$13.68
-
$13.68
Current price
$13.68
SKU N03408
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Range: | 22 AWG |
Material: | Tin-Plated Copper |
L1: | 8mm (0.31") |
D: | 1.2mm (0.04") |
D1: | 0.8mm (0.03") |
D2: | 1.5mm (0.05") |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 9A |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
