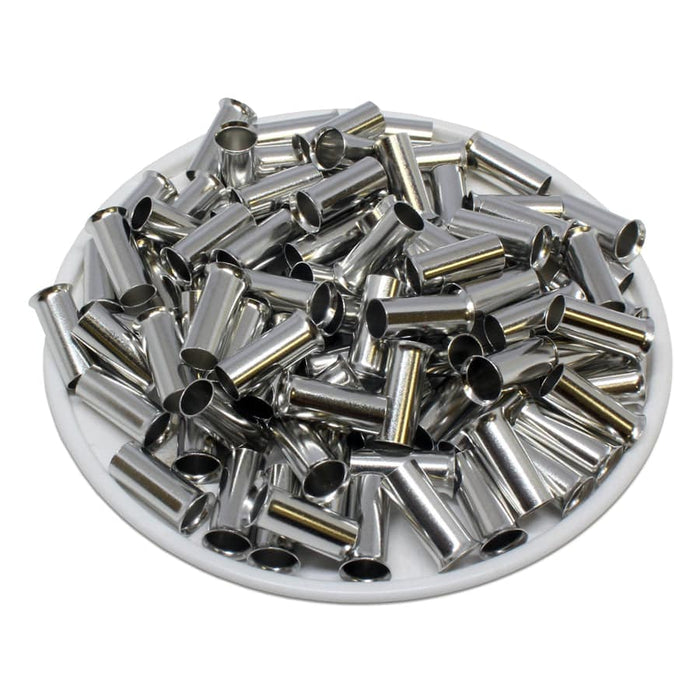

8 AWG (12mm Pin) Non Insulated Ferrules

$10.47
SKU N100012
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 8AWG (10.00mm2)
Material: Tin-Plated Copper
L1: 12mm (0.47")
D: 4.6mm (0.18")
D1: 4.2mm (0.23")
D2: 5.8mm (0.18")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 70A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

ABB: 30458423
Altech Corp: 2228.0
American Electrical: 1212110
Burndy: YF0812UI
Crimp Supply: 13A12011
Eclipse: 701-064
Elecdirect: FERN-8-12B
Greenlee: 76/12VZ
McMaster-Carr: 9681K71 9681K35
Panduit: F83-12-D
Phoenix Contact: 3200331
Thomas Betts: F9022
WAGO: 216-109
Weidmuller: 282900000
Weland: 06.600.4727.0
ZF: V3AE9070
