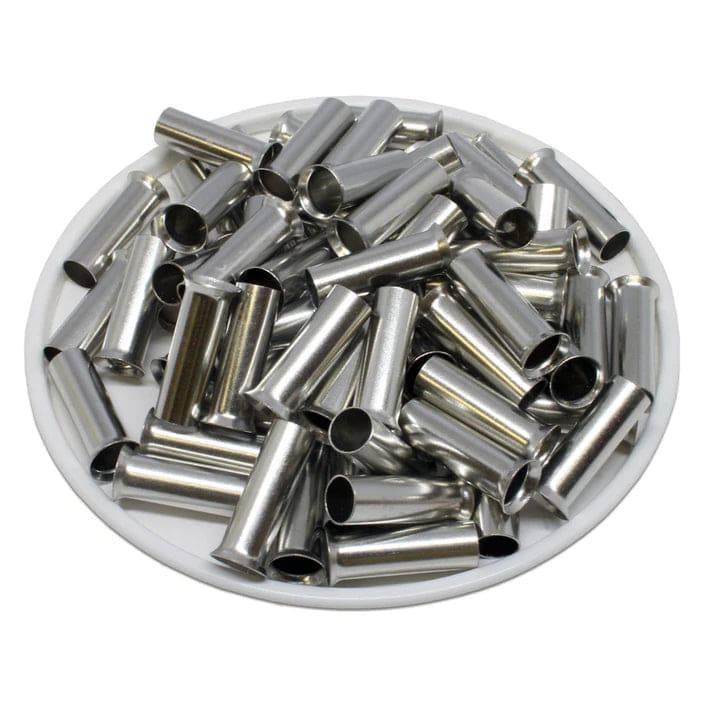

N100015 - 8 AWG - 10.00mm2 (15mm Pin) Non Insulated Ferrules

Sold out
Original price $10.56 - Original price $10.56
Original price
$10.56
$10.56 - $10.56
Current price $10.56
SKU N100015
Availability:
Out of stock
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 8AWG (10.00mm2)
Material: Tin-Plated Copper
L1: 15mm (0.59")
D: 4.9mm (0.19")
D1: 4.2mm (0.165")
D2: 5.8mm (0.23")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 70A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: 3045852430458524
Altech Corp: 2389.0
American Electrical: 2389.0
Bizlink: 115G0-028354-01

Burndy Hubbell: 10097789 YF0815UI
Eclipse: 701-065
Greenlee: 76/15VZ
Panduit: F83-15-D
RS PRO: 178-7358
Thomas Betts: F9023
Weidmuller: 124800000
ZF: V3AE9071 V30AE009071
