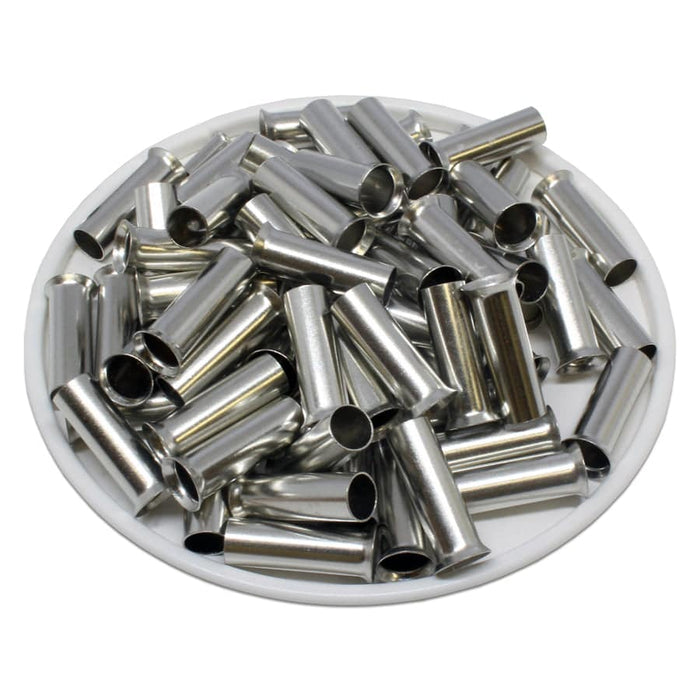

N100016 - 8 AWG (16mm Pin) Non Insulated Ferrules
Sold out
Original price
$11.23
-
Original price
$11.23
Original price
$11.23
$11.23
-
$11.23
Current price
$11.23
SKU N100016
Availability:
Out of stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 8AWG (10.00mm2) |
| Material: | Tin-Plated Copper |
| L1: | 16mm (0.63") |
| D: | 4.6mm (0.18") |
| D1: | 4.2mm (0.165") |
| D2: | 5.8mm (0.23") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 70A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: 30458625
Cembre: KE1016ST
Documents
Click to view product spec sheet:
