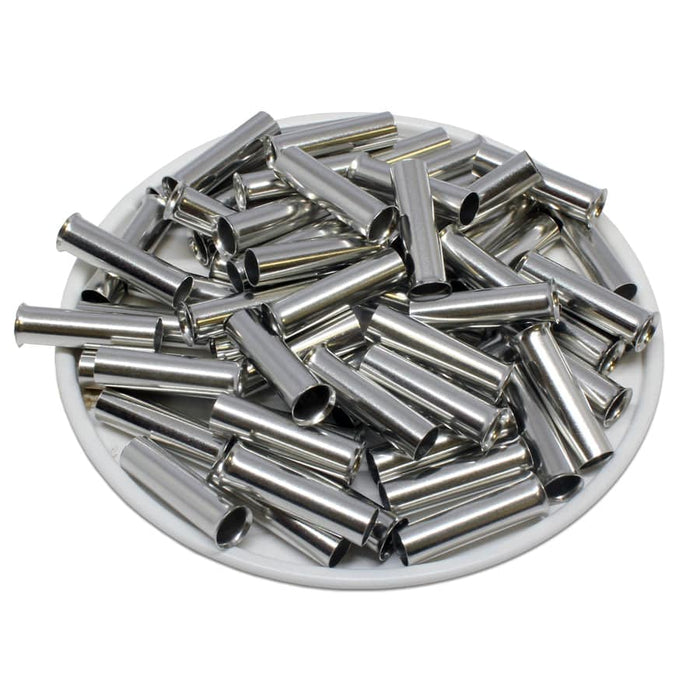

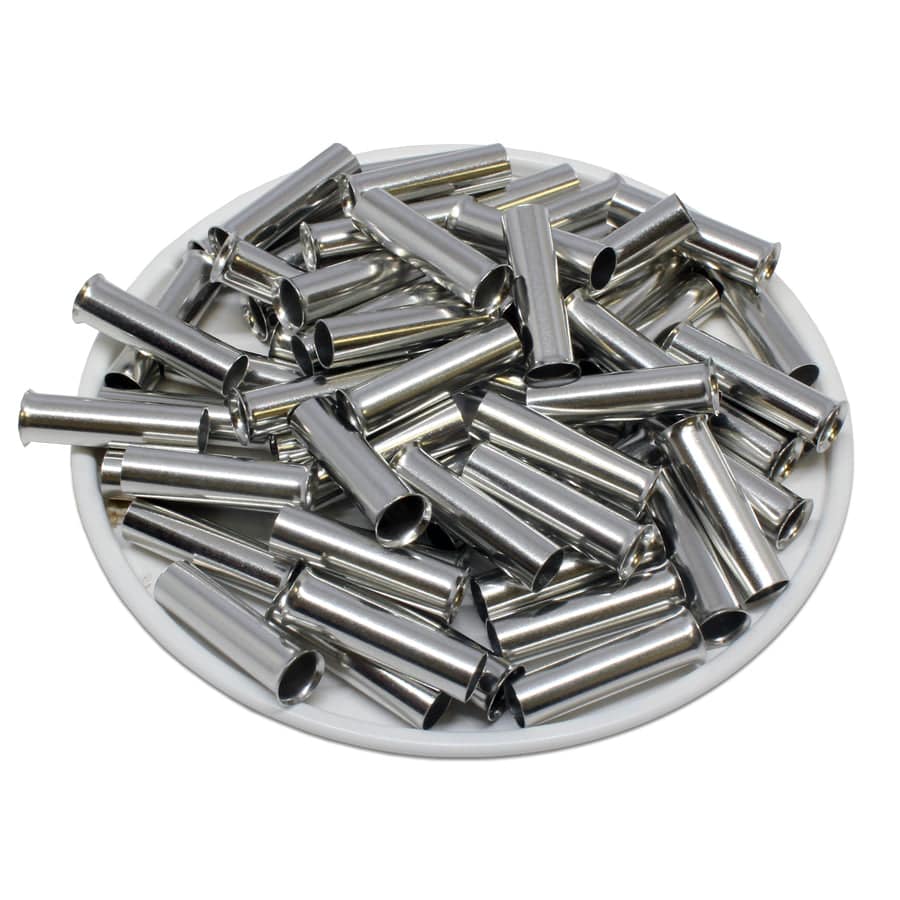

N100018 - 8 AWG (18mm Pin) Non Insulated Ferrules

Original price $12.18 - Original price $12.18
Original price
$12.18
$12.18 - $12.18
Current price $12.18
SKU N100018
Availability:
in stock, ready to be shipped
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 8AWG (10.00mm2)
Material: Tin-Plated Copper
L1: 18mm (0.71")
D: 4.6mm (0.18")
D1: 4.2mm (0.165")
D2: 5.8mm (0.23")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 70A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG01983
Altech Corp: 2229.0
American Electrical: 1218110
Burndy Hubbell: 10097790 YF0818UI - D-60655-08
Eclipse: 701-066
McMaster-Carr: 9681K72 9681K36
Panduit: F83-18-D
Phoenix Contact: 3200344
Thomas Betts: F9024
Weidmuller: 379300000
ZF: V3AE9072
