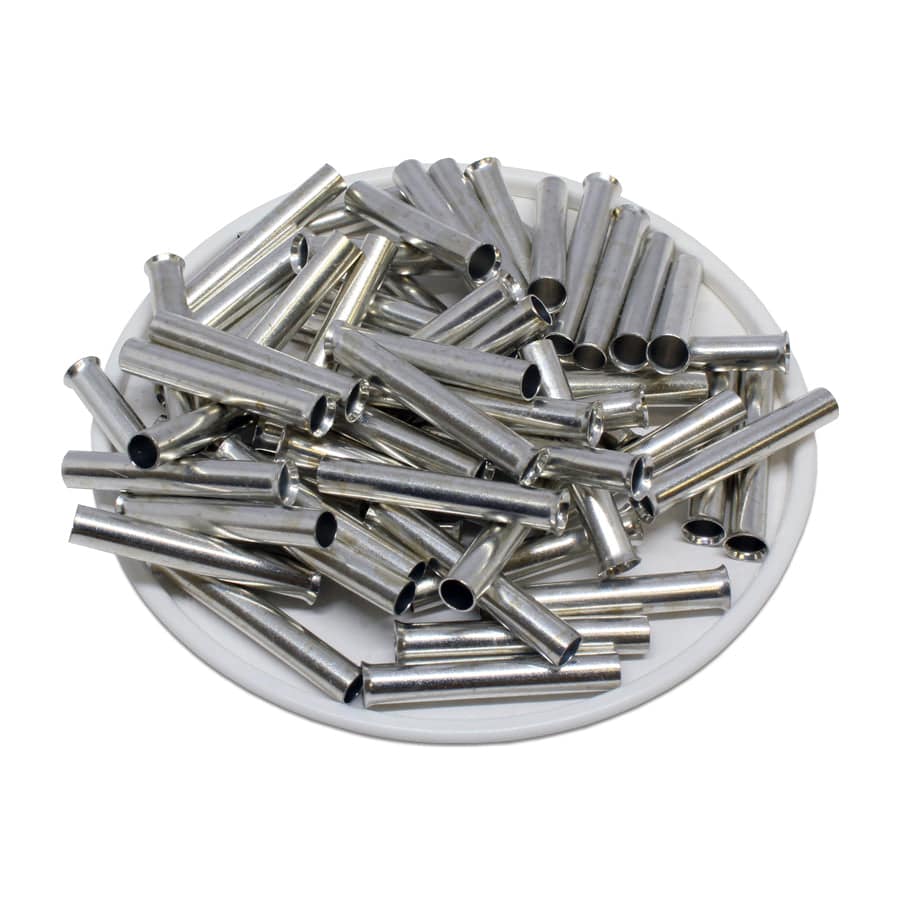

8 AWG (25mm Pin) Non Insulated Ferrules

$23.34
SKU N100025
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 8AWG (10.00mm2)
Material: Tin-Plated Copper
L: 25mm (0.98")
D: 4.6mm (0.18")
D1: 4.2mm (0.165")
D2: 5.8mm (0.23")
Max Electrical Rating: Up to 2000V
Max Elecytrical Current: 70A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

ABB: XUSG01985
American Electrical: 1225110
Burndy: D-60655-04
Greenlee: 76/25VZ
Panduit: F83-25D
