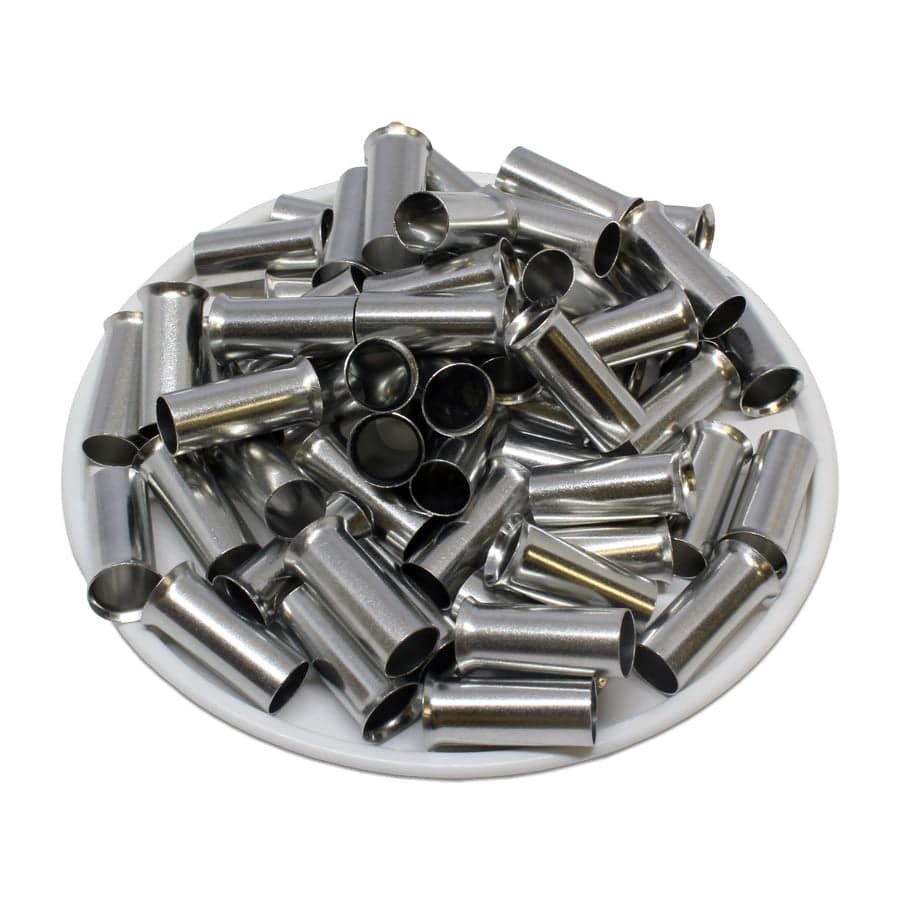

N160015 - 6 AWG (15mm Pin) Non Insulated Ferrules

Original price $0.00 - Original price $12.52
Original price
$0.00 - $12.52
Current price $12.52
SKU N160015
in stock, ready to be shipped
Out of stock
Piece Quantity: 250 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 6 AWG (16.00mm2)
Material: Tin-Plated Copper
L1: 15mm (0.59")
D: 6.4mm (0.25")
D1: 5.8mm (0.23")
D2 7.5mm (0.295")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 95A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross References:

ABB: 30458807
Altech Corp: 2392.0
American Electrical: 1215116
Burndy Hubbell: 10097792 YF0615UI
Eclipse: 701-068
Greenlee: 77/15VZ
Panduit: F84-15-TL
Thomas Betts: F9026-110
WAGO: 216-110
Weidmuller: 124300000
ZF: V3AE9074
