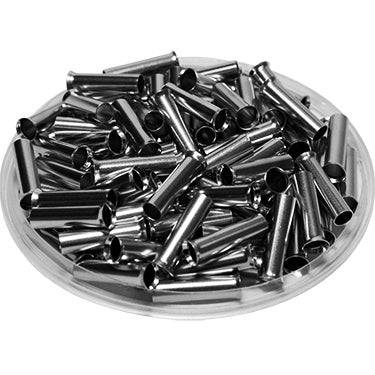

![N20007 - True 14 AWG (7mm Pin) Non Insulated Ferrules - Ferrules Direct](http://www.ferrulesdirect.com/cdn/shop/products/N250-600_375x375_42ab0de1-6f33-474c-bf1f-106d4af5d52b_375x375.jpg?v=1706808302)
N20007 - True 14 AWG (7mm Pin) Non Insulated Ferrules
Original price
$12.17
-
Original price
$12.17
Original price
$12.17
$12.17
-
$12.17
Current price
$12.17
SKU N20007
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Range: | True 14 AWG |
Material: | Tin-Plated Copper |
L1: | 7.0mm (0.27") |
D: | 2.5mm (0.09") |
D1: | 1.9mm (0.07") |
D2 | 2.9mm (0.11") |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 30AMP |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Pdf_aca7efa3-896e-4c4c-baef-80e5c51a67fb_100x100.png?v=1578685893)
