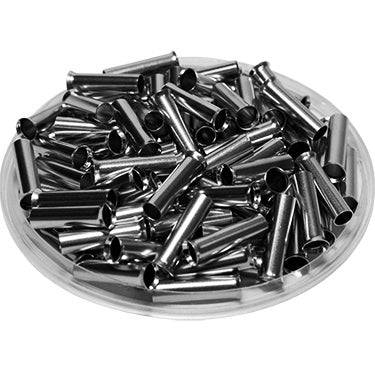

N20025 - True 14 AWG (25mm Pin) Non Insulated Ferrules
Original price
$29.39
-
Original price
$29.39
Original price
$29.39
$29.39
-
$29.39
Current price
$29.39
SKU N20025
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Range: | True 14 AWG |
Material: | Tin-Plated Copper |
L1: | 25.0mm (0.984") |
D: | 2.5mm (0.09") |
D1: | 1.9mm (0.07") |
D2 | 2.9mm (0.11") |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 30AMP |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Cross References
Cross References:None
