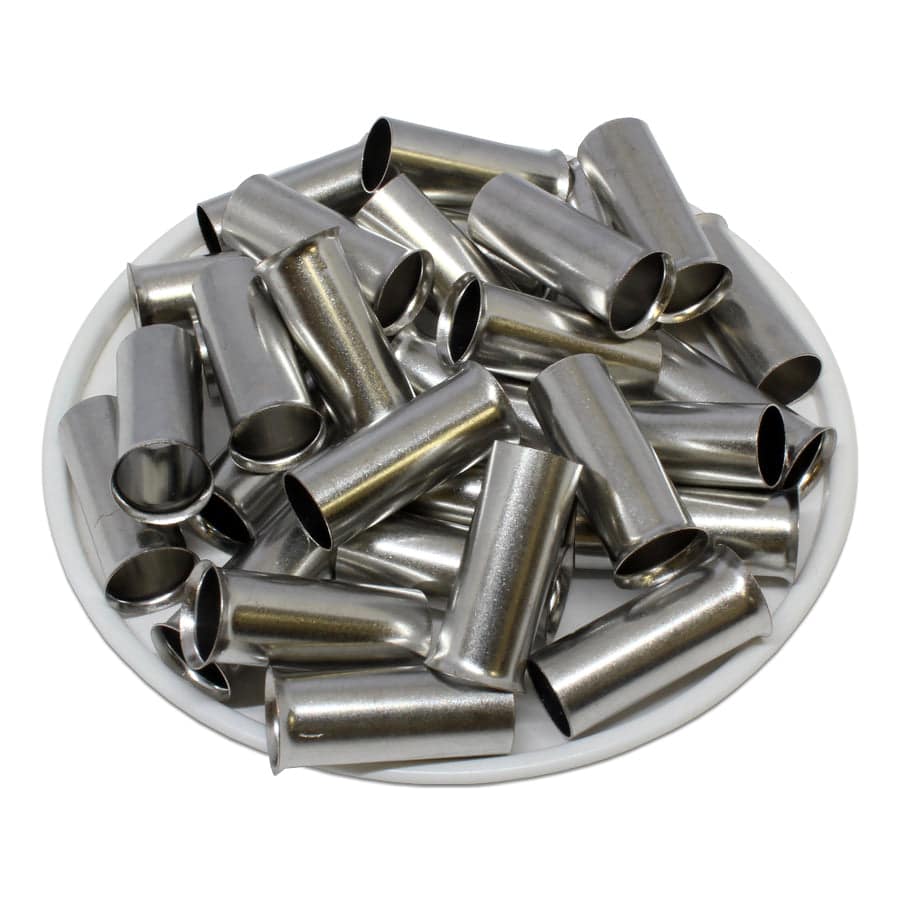

N250020 - 4 AWG (20mm Pin) Non Insulated Ferrules
Original price
$8.90
-
Original price
$8.90
Original price
$8.90
$8.90
-
$8.90
Current price
$8.90
SKU N250020
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 4AWG (25.00mm2) |
| Material: | Tin-Plated Copper |
| L: | 20mm (0.78") |
| D: | 7.8mm (0.31") |
| D1: | 7.2mm (0.28") |
| D2: | 9.1mm (0.36") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 125A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: XUSG01993
Burndy Hubbell: 10097798 YF0420UI
Greenlee: 78/20VZ
Phoenix Contact: 3200386
