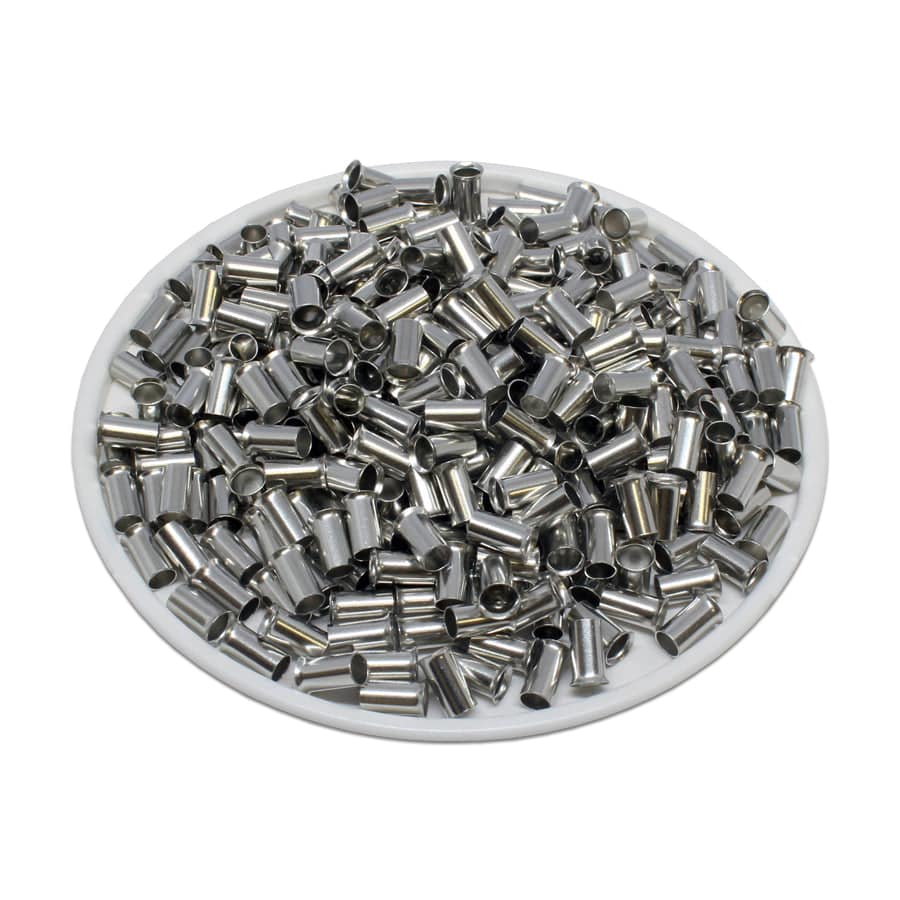

N25012 - 14AWG (12mm Pin) Non Insulated Ferrules
Original price
$0.00
-
Original price
$16.06
Original price
$16.06
$0.00
-
$16.06
Current price
$16.06
SKU N25012
Availability:
in stock, ready to be shipped
Availability:
Out of stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 14 AWG (2.50mm2) |
| Material: | Tin-Plated Copper |
| L1: | 12mm (0.47") |
| D: | 2.6mm (0.10") |
| D1: | 2.1mm (0.08") |
| D2 | 3.3mm (0.13") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 30A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: 30457814
Altech Corp: 2224.0
American Electrical: 121210250
Burndy Hubbell: 10097778 YF1412UI
Eclipse: 701-055
Greenlee: 73/12VZ
McMaster-Carr: 9681K63 9681K26
Panduit: F80-12-M
Phoenix Contact: 3200292
SPC Technology: SPC4546 84N2080
Thomas Betts: SPC4546 84N2080
Weidmuller: 186100000
ZF: V3AE9060
